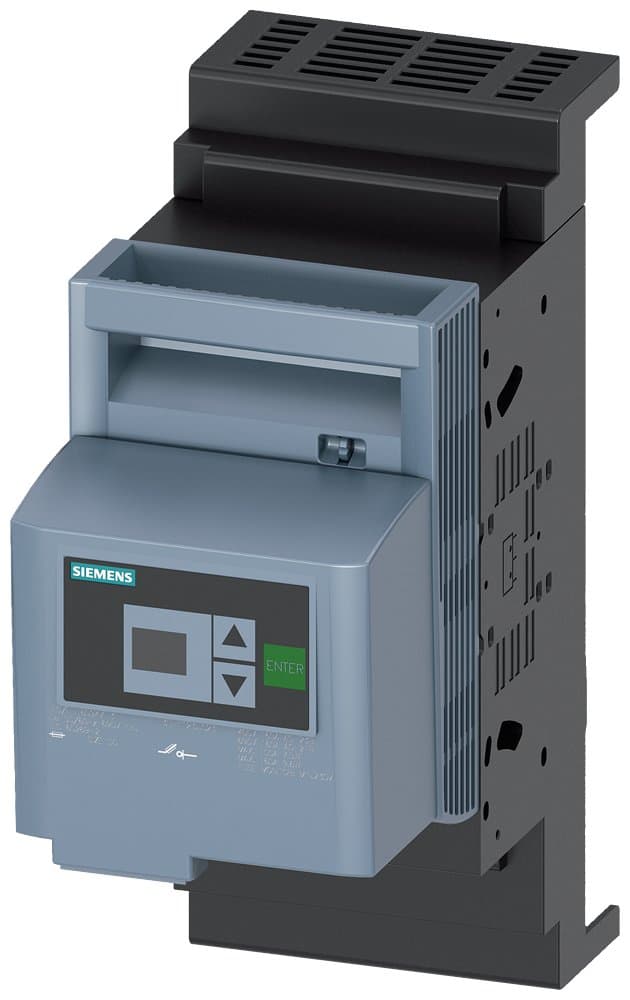

Product Model
3NP1123-1JC23
Selling Points
- 1Modular design for maximum flexibility.
- 2Suitable for floor mounting, standard rail, and Siemens busbar system.
- 33-pole, NH000, 160 A current rating.
- 4High safety standards with electronic EFM 20 monitoring.
- 5Compatible with Rittal busbar systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 000, 60mm Busway System, box terminal, 3P, electronic EFM20 fuse monitoring, suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busway System |
Fuse Rating | Size:000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specifications | 3NP112【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1123-1JC23 |
Specifications may be subject to change without notice
