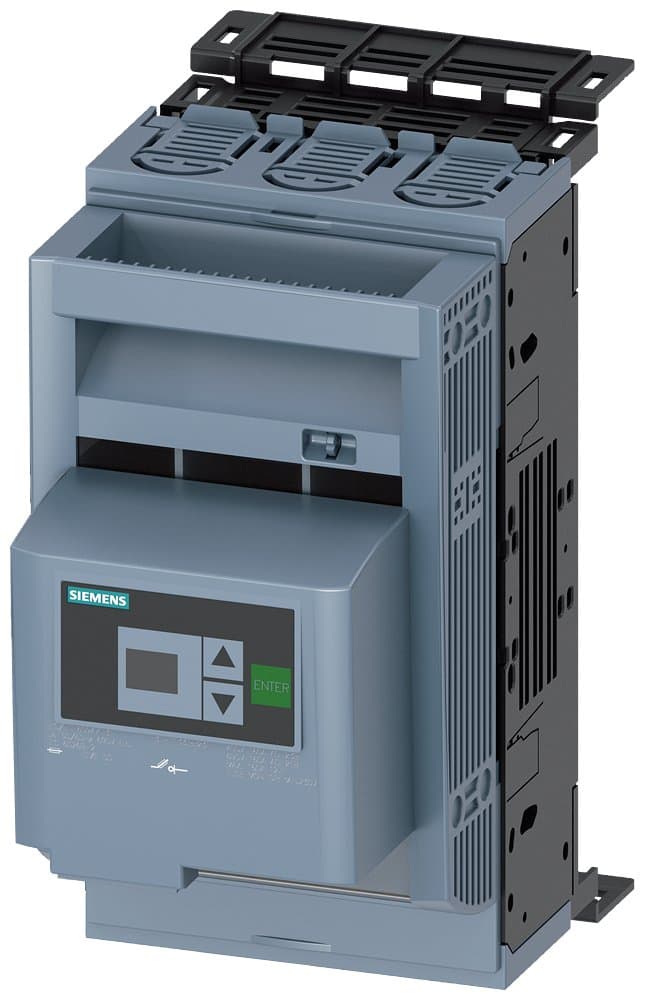

Product Model
3NP1133-1BB23
Selling Points
- 1Designed for 8US 40 mm busbar systems.
- 2Ensures real-time fuse monitoring for enhanced safety.
- 3Suitable for three-phase electrical installations.
- 4Handles up to 160 A of operational current.
- 5Provides robust protection against environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 40mm busbar system, box terminal, 3P, electronic EFM20 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Mounting Type | 40mm Busbar System |
Fuse Rating | Size: 00/000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specification | 3NP113【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3NP1133-1BB23 |
Specifications may be subject to change without notice
