Product Model

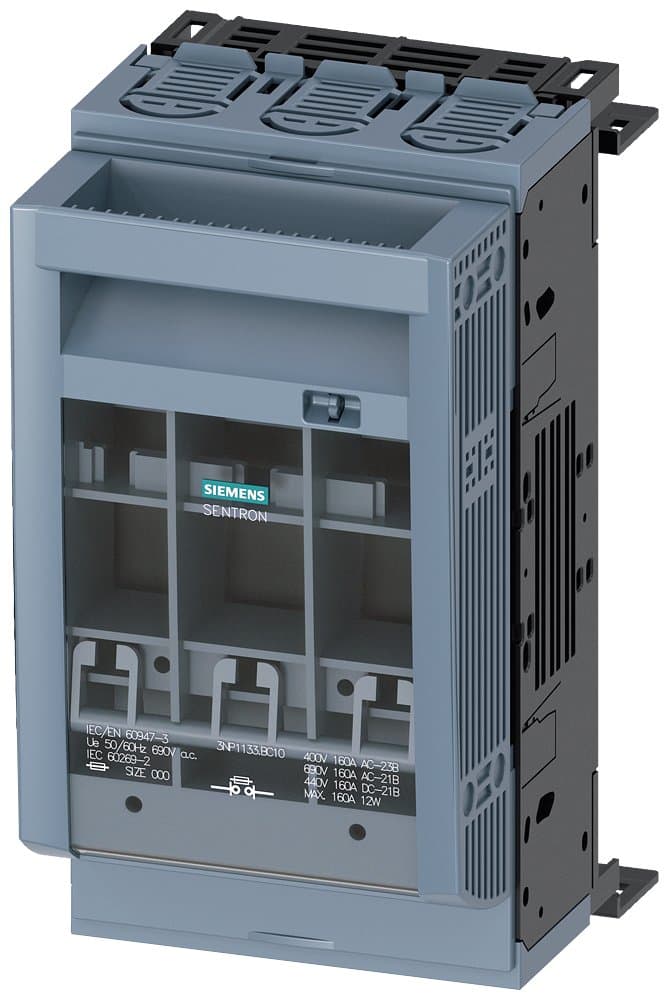

3NP1133-1BC10
Selling Points
- 1Designed for efficient power distribution in busbar systems.
- 2Handles high currents with precision and reliability.
- 3Ensures consistent and reliable operation.
- 4Operates between -25°C and +55°C for versatile applications.
- 5Part of the trusted Sentron range from Siemens, known for its reliability and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, flat connection, 3P, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Installation Type | 60mm Busbar System | Fuse Rating | Size: 00/000 |
Terminal Type | Flat Connection | Rated Current In(A) | 160 |
Specifications | 3NP11【160A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1133-1BC10 |
Specifications may be subject to change without notice
