Product Model

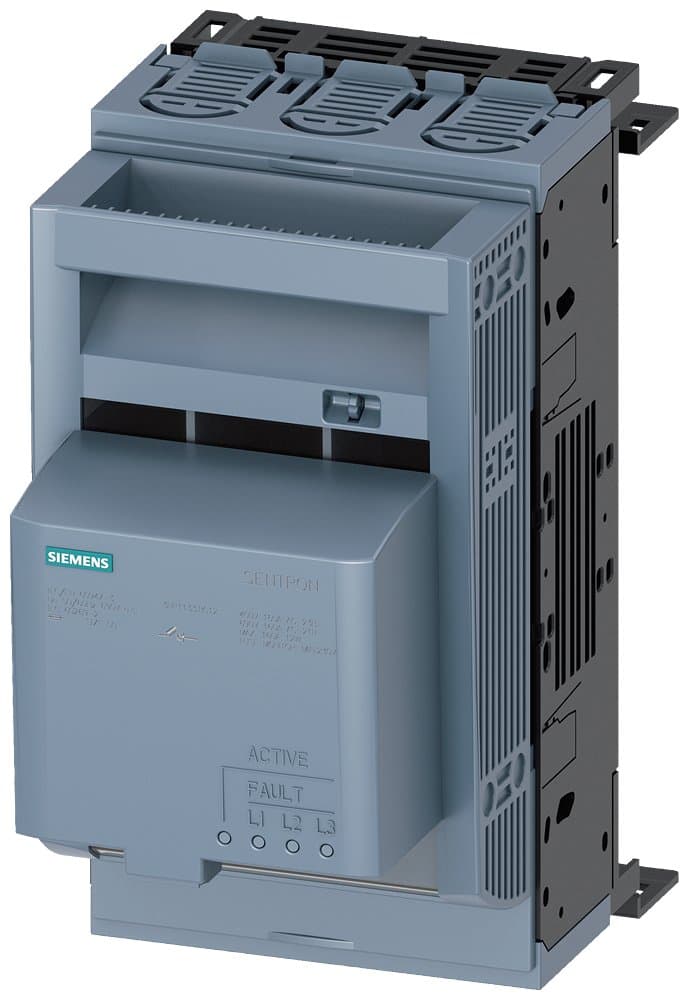

3NP1133-1BC12
Selling Points
- 1Reliable Overload and Short-Circuit Protection: Provides robust protection against overloads and short circuits.
- 2Electronic Fuse Monitoring: Includes electronic fuse monitoring for efficient and accurate monitoring.
- 3Flexible Installation Options: Suitable for busbar system 8US, floor mounting, and standard mounting rail.
- 4Enhanced Safety Features: Incorporates reach-round and touch protection to prevent user contact with current conducting parts.
- 5Easy Inspection Window: Features a large inspection window for easy recognition of installed fuses.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, flat connection, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others: | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring: | Electronic EFM10 Fuse Monitoring | Installation Type: | 60mm Busbar System |
Fuse Specification: | Size: 00/000 | Terminal Type: | Flat Connection |
Rated Current In(A): | 160 | Specification: | 3NP11【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1133-1BC12 |
Specifications may be subject to change without notice
