Product Model

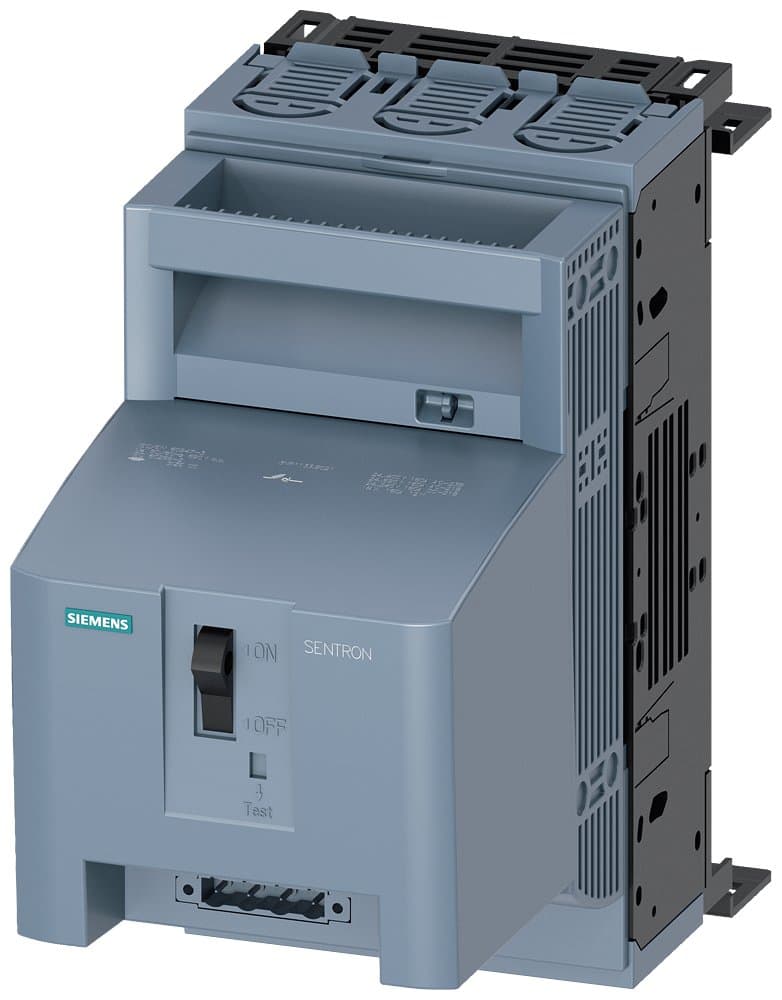

3NP1133-1BC21
Selling Points
- 1Electromechanical Fuse Monitoring: Ensures reliable detection of fuse status.
- 2Enhanced Safety Features: Includes reach-round and touch protection for user safety.
- 3Suitable for Busbar Systems: Compatible with Siemens busbar system 8US 60 mm.
- 4Three-Pole Design: Provides comprehensive electrical protection.
- 5Compact Design: Easy to install and maintain with a compact footprint.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, box terminal, 3P, electromechanical fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Other | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring | Electromechanical Fuse Monitoring | Mounting Type | 60mm Busbar System |
Fuse Rating | Size: 00/000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specification | 3NP11【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1133-1BC21 |
Specifications may be subject to change without notice
