Product Model

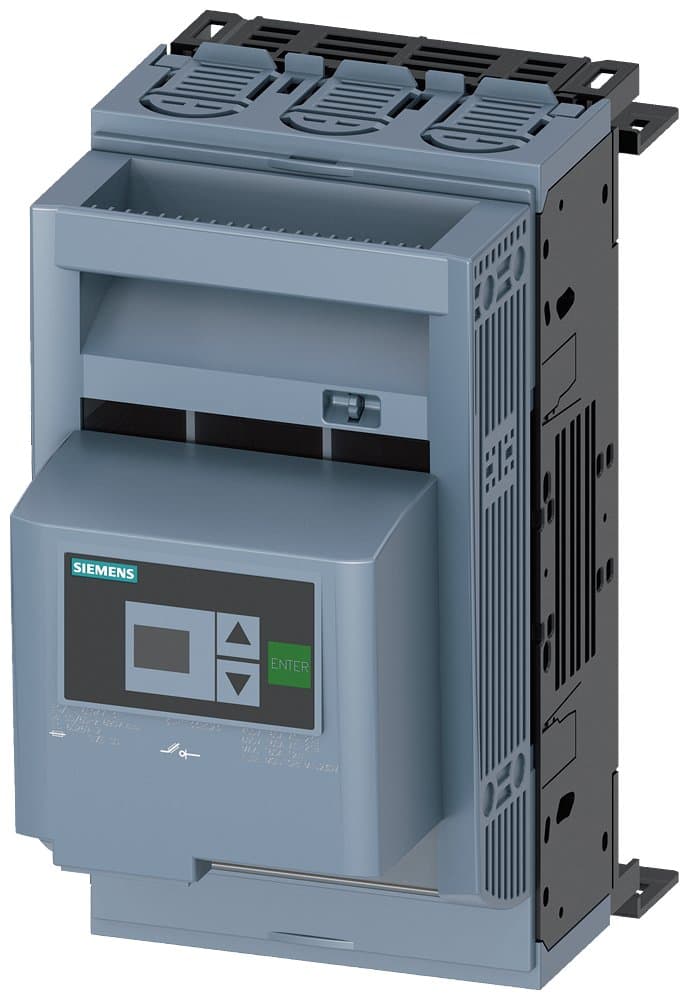

3NP1133-1BC23
Selling Points
- 1Designed for demanding industrial applications.
- 2Equipped with electronic fuse monitoring (EFM20).
- 3Suitable for Busbar system 8US 60 mm.
- 43-pole, NH00 configuration for diverse installation needs.
- 5Built to withstand harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, box terminal, 3P, electronic EFM20 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Specification | Size: 00/000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specification | 3NP11【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1133-1BC23 |
Specifications may be subject to change without notice
