Product Model

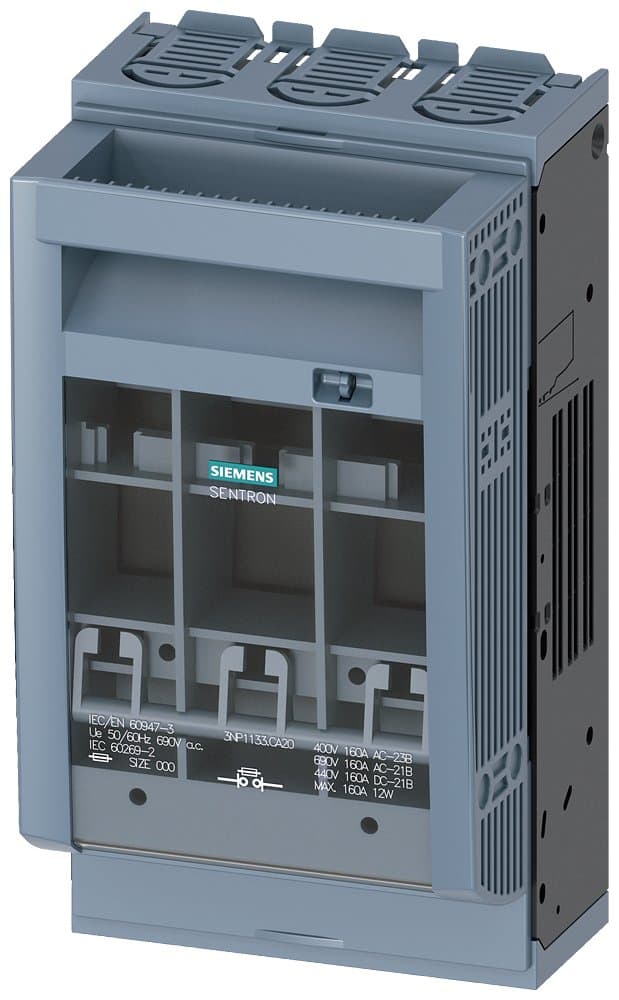

3NP1133-1CA20
Selling Points
- 1High amperage rating of 160 A for reliable power distribution.
- 23-pole design with NH000 fuse size for versatile electrical connections.
- 3Operating temperature range of -25 to 55°C for diverse environmental use.
- 4Surface mounting with box terminal connection for easy installation.
- 5Meets IP20 degree of protection for enhanced safety and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
Description | 3NP1, rated current 160A, Size 00/000, surface mounting, box terminal, 3P, | Installation Type: | Surface Mounting |
Fuse Rating: | Size:00/000 | Terminal Type: | Box Terminal |
Rated Current In(A): | 160 | Specifications: | 3NP113【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1133-1CA20 |
Specifications may be subject to change without notice
