Product Model

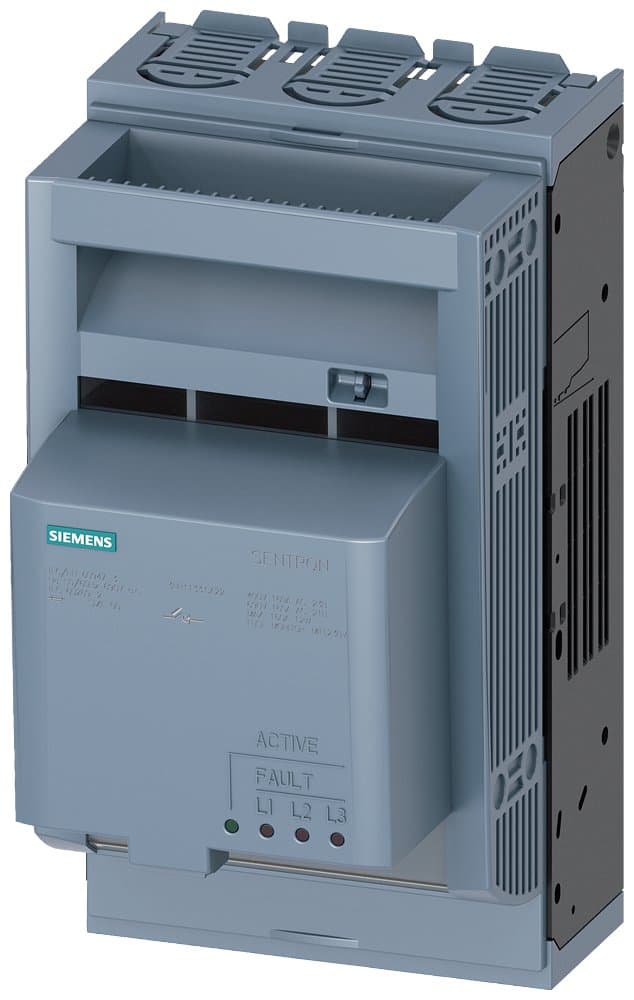

3NP1133-1CA22
Selling Points
- 1Enhanced Protection: Provides reliable overload and short-circuit protection for personnel and plants.
- 2User-Friendly Design: Incorporates a reach-round and touch protection system for safe mounting.
- 3Flexible Installation: Suitable for floor mounting, standard mounting rail, and Siemens busbar system 8US.
- 4Electronic Monitoring: Includes electronic fuse monitoring function with line monitoring.
- 5Modular Design: Offers maximum flexibility with modular design and universal accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
Description | 3NP1, rated current 160A, Size 00/000, surface mounting, box terminal, 3P, electronic EFM10 fuse monitoring, | Fuse Monitoring: | Electronic EFM10 Fuse Monitoring |
Mounting Type: | Surface Mounting | Fuse Rating: | Size: 00/000 |
Terminal Type: | Box Terminal | Rated Current In(A): | 160 |
Specifications: | 3NP113【160A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3NP1133-1CA22 |
Specifications may be subject to change without notice
