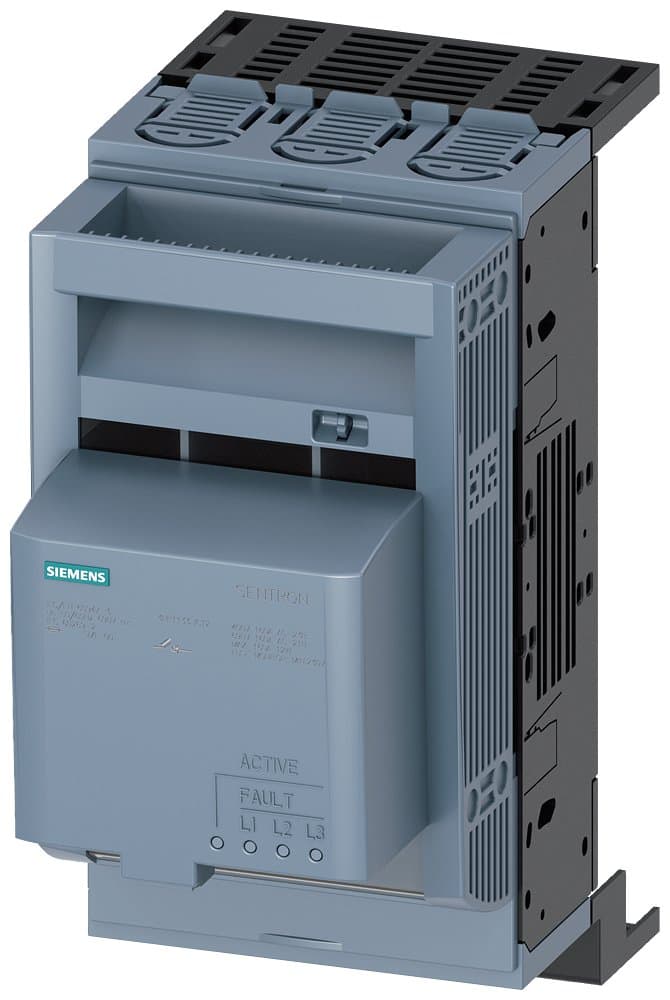

Product Model
3NP1133-1JC12
Selling Points
- 1High Performance: Designed for reliability and efficiency in electrical installations.
- 2Rittal Compatibility: Specifically designed for Rittal busbar systems.
- 3160 A Rating: Handles up to 160 A, ensuring robust power handling.
- 43-Pole Configuration: Suitable for three-phase electrical systems.
- 5LV HRC Fuse Type: Equipped with Low Voltage High Rupturing Capacity (LV HRC) fuses for enhanced safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, flat connection, 3P, electronic EFM10 fuse monitoring, suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Specification | Size: 00/000 | Terminal Type | Flat Connection |
Rated Current In(A) | 160 | Specification | 3NP11【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1133-1JC12 |
Specifications may be subject to change without notice
