Product Model

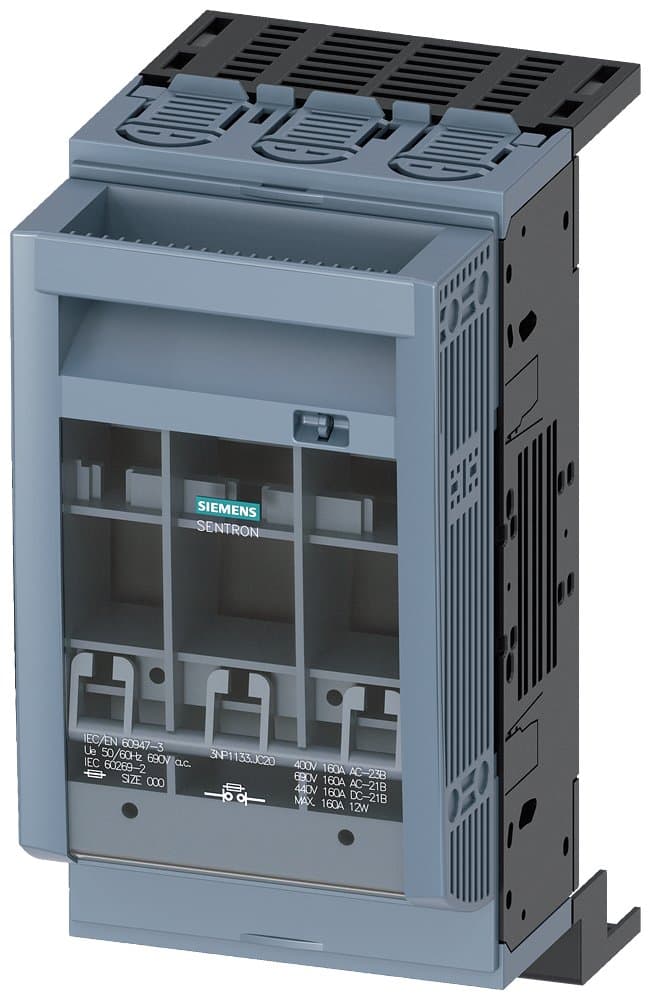

3NP1133-1JC20
Selling Points
- 1Reliable Safety Switch: Ensures safe operation with a maximum rated operation voltage of 690V AC.
- 2High Current Capacity: Handles a rated permanent current of 160A, suitable for demanding industrial applications.
- 3Versatile Mounting Options: Suitable for floor mounting, front mounting, and busbar mounting.
- 4Compliant with Standards: Meets industry standards for fuse switch disconnectors in industrial settings.
- 5Durable Design: Built to withstand harsh industrial conditions with a robust design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
Description | 3NP1, Rated current 160A, Size 00/000, 60mm Busbar System, Box Terminal, 3P, Suitable for Rittal Riline60 system with base | Others: | Suitable for Rittal Riline60 system with base |
Installation Type: | 60mm Busbar System | Fuse Rating: | Size: 00/000 |
Terminal Type: | Box Terminal | Rated Current In(A): | 160 |
Specifications: | 3NP11【160A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1133-1JC20 |
Specifications may be subject to change without notice
