Product Model

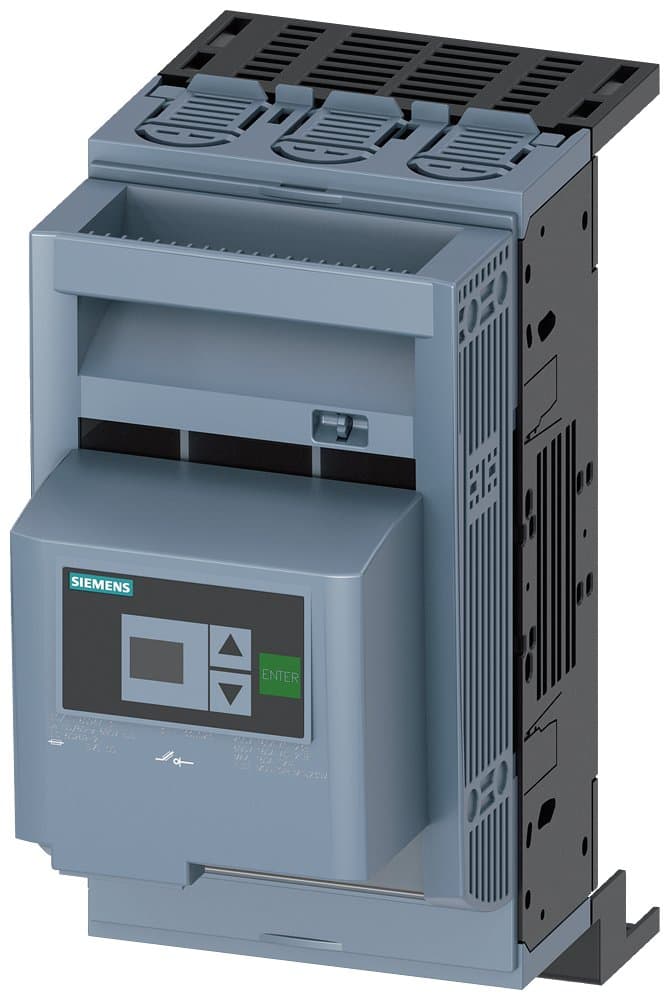

3NP1133-1JC23
Selling Points
- 13 Pole Configuration: Designed for three-phase applications.
- 2160A Rating: Handles up to 160 amps for reliable power distribution.
- 3Rittal Busbar Compatibility: Specifically designed for Rittal busbar systems, ensuring seamless integration.
- 4NH00 Model: Features a box terminal connection for easy installation.
- 5Safety Monitoring: Equipped with electronic safety monitoring (EFM 20) for enhanced safety features.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V) | 440 | AC Rated Voltage (V) | 690 |
Insulation Voltage (V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 160A, Size 00/000, 60mm busbar system, box terminal, 3P, electronic EFM20 fuse monitoring, suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Rating | Size: 00/000 | Terminal Type | Box Terminal |
Rated Current In(A) | 160 | Specifications | 3NP11【160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1133-1JC23 |
Specifications may be subject to change without notice
