Product Model

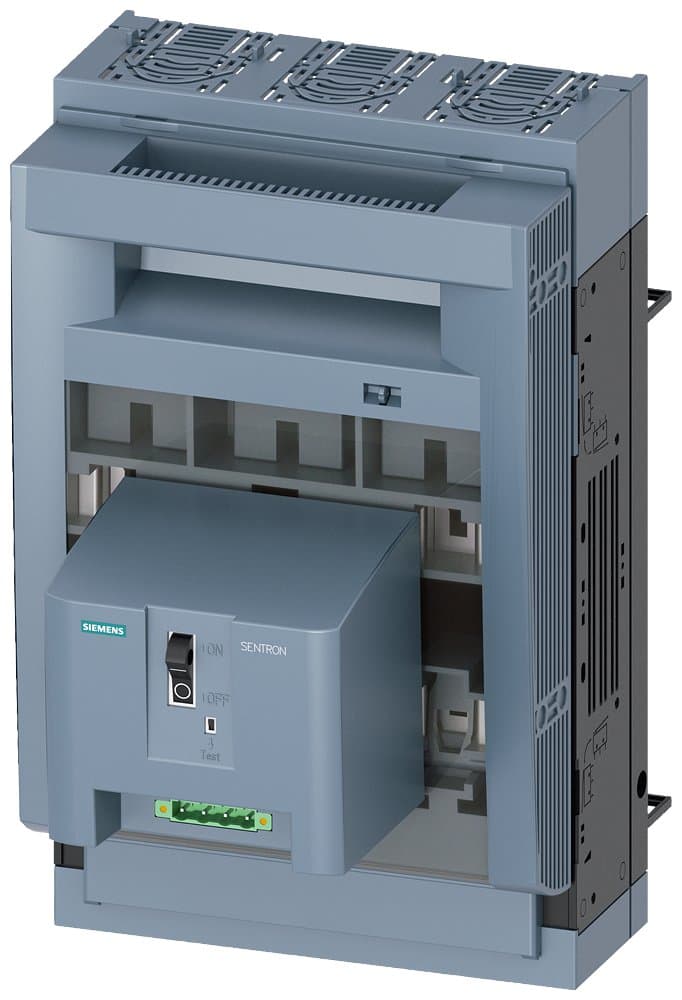

3NP1143-1BC11
Selling Points
- 1Reliable Overload and Short-Circuit Protection: Provides enhanced protection for personnel and plants with electromechanical fuse monitoring.
- 2Modular Design and Universal Accessories: Offers maximum flexibility with a universal connection system and various mounting options.
- 3Suitable for Various Industries: Ideal for use in industrial plants, infrastructure, and other applications requiring high reliability.
- 4Easy Installation: Designed for floor mounting, standard mounting rail, and Siemens busbar system 8US, making installation straightforward.
- 5Enhanced Safety Features: Incorporates reach-round and touch protection as standard, ensuring user safety during operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 250A, Size 0/1, 60mm busbar system, flat connection, 3P, electromechanical fuse monitoring, 32/70mm cover with contact protection, suitable for busbar systems and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar systems and Rittal systems without base |
Fuse Monitoring | Electromechanical Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Specification | Size: 0/1 | Terminal Type | Flat Connection |
Rated Current In(A) | 250 | Specifications | 3NP114【250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1143-1BC11 |
Specifications may be subject to change without notice
