Product Model

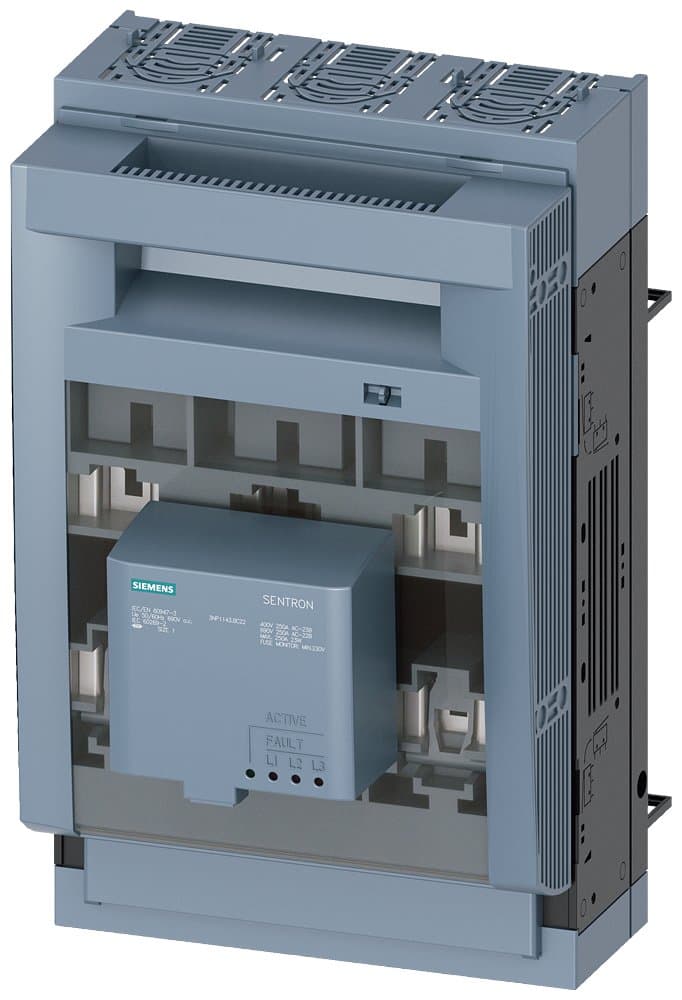

3NP1143-1BC22
Selling Points
- 1High-Quality Line Protection: Safeguards electrical installations and personnel against short circuits and overloads.
- 2Compact Design: Ideal for space-limited applications with a slim profile.
- 3Electronic Safety Monitoring: Features advanced EFM 10 electronic safety monitoring for enhanced protection.
- 4Versatile Mounting Options: Suitable for floor mounting and 40/60 mm busbar systems.
- 5Comprehensive Accessories: Includes a range of accessories for greater functionality and customization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
Description | 3NP1, rated current 250A, Size 0/1, 60mm busbar system, box terminal, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others: | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring: | Electronic EFM10 Fuse Monitoring | Installation Type: | 60mm Busbar System |
Fuse Specification: | Size: 0/1 | Terminal Type: | Box Terminal |
Rated Current In(A): | 250 | Specification: | 3NP114【250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1143-1BC22 |
Specifications may be subject to change without notice
