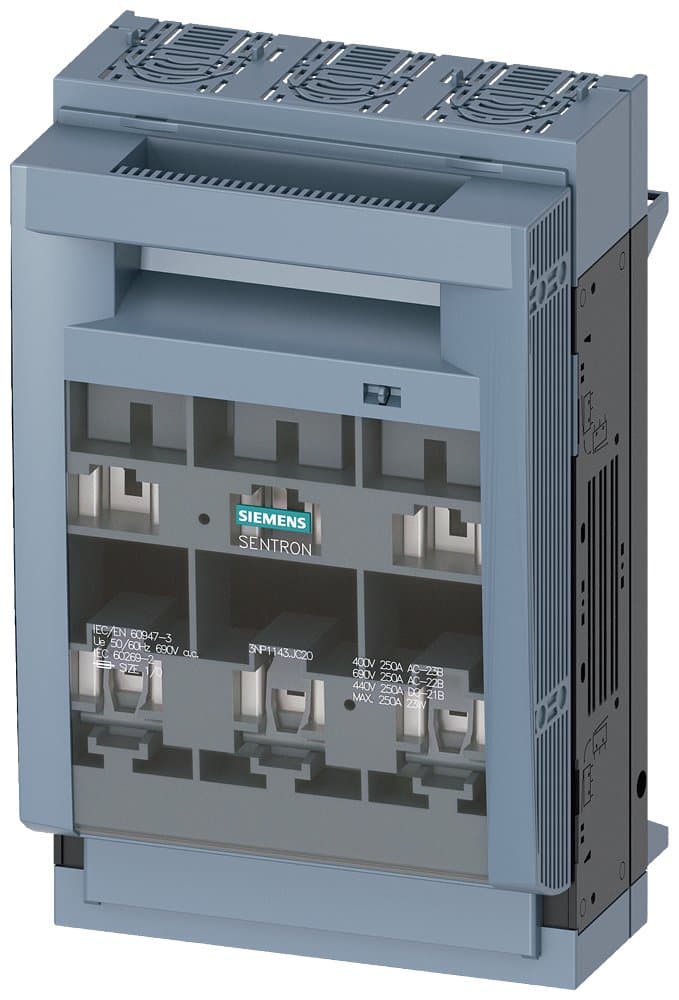

Product Model
3NP1143-1JC20
Selling Points
- 1Ensures consistent performance in electrical installations.
- 2Protects users from electric shock with permanent switch-on and switch-off under load.
- 3Compatible with Rittal busbar systems and various mounting options.
- 4Ideal for space-constrained applications with a cover level of 32/70 mm.
- 5Meets DIN VDE 0100-200 and other international electrical standards for safety and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated current 250A, Size 0/1, 60mm Busbar System, Box Terminal, 3P, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
Installation Type | 60mm Busbar System | Fuse Rating | Size: 0/1 |
Terminal Type | Box Terminal | Rated Current In(A) | 250 |
Specifications | 3NP114【250A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1143-1JC20 |
Specifications may be subject to change without notice
