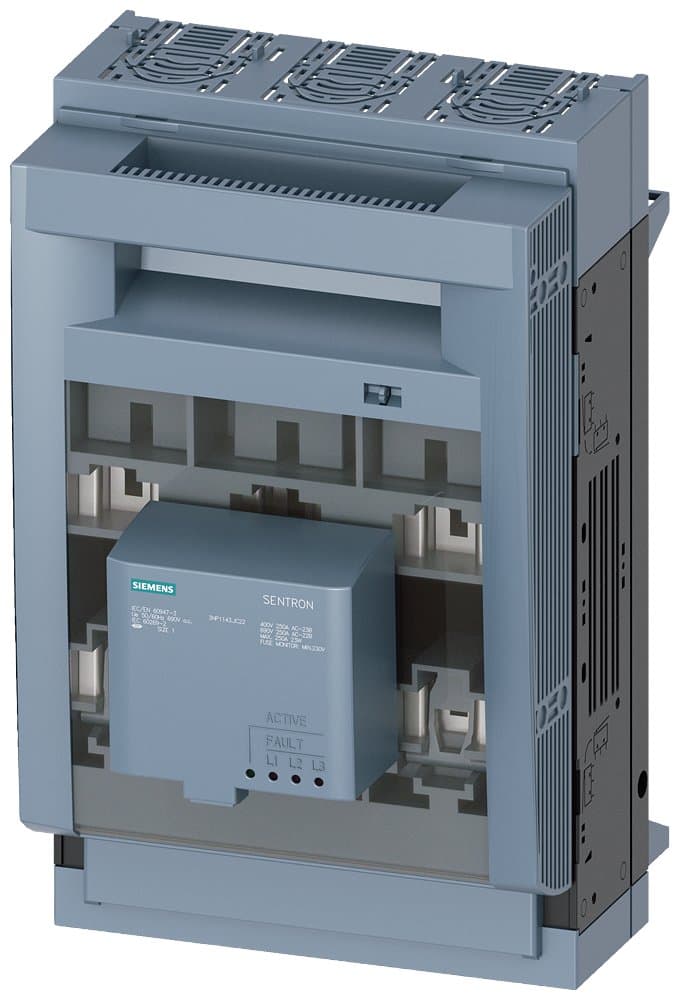

Product Model
3NP1143-1JC22
Selling Points
- 1Ensures consistent performance in electrical installations.
- 2Equipped with electronic fuse monitoring (EFM10) for enhanced safety.
- 3Compatible with Rittal busbar systems and various mounting options.
- 4Allows permanent switch-on and switch-off under load, protecting against electric shock.
- 5Meets DIN VDE 0100-200 and IEC 60947-3 standards for electrical safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 250A, Size 0/1, 60mm busbar system, box terminal, 3P, electronic EFM10 fuse monitoring, suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Rating | Size: 0/1 | Terminal Type | Box Terminal |
Rated Current In(A) | 250 | Specifications | 3NP114【250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1143-1JC22 |
Specifications may be subject to change without notice
