Product Model

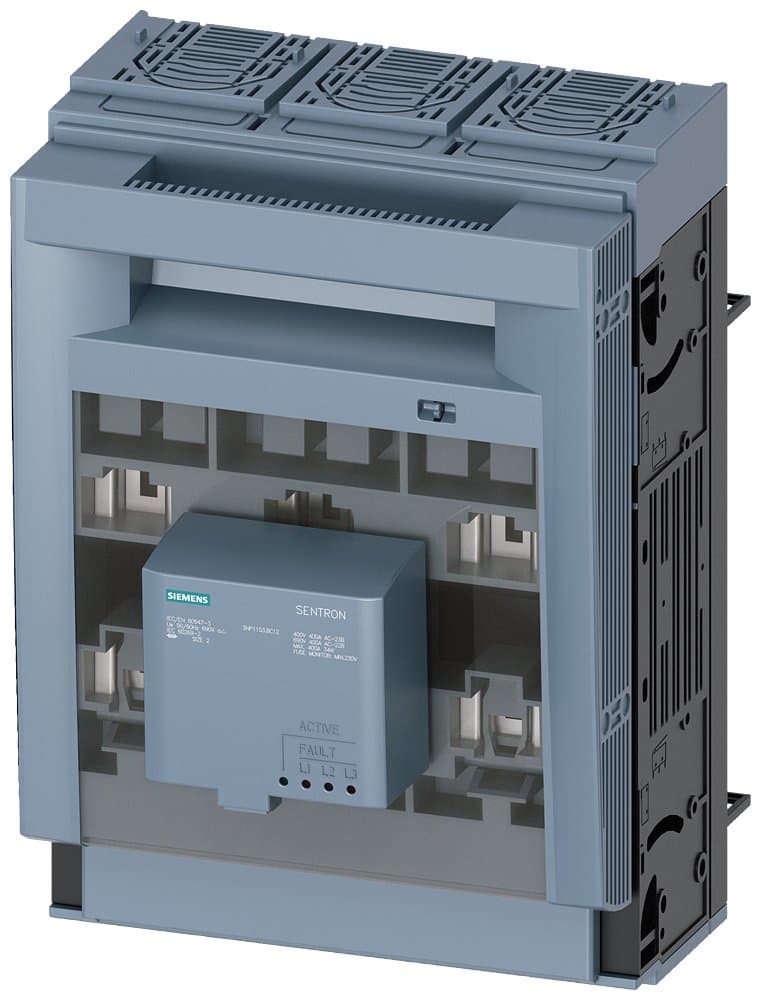

3NP1153-1BC12
Selling Points
- 1High-current rating: 400 A for reliable power distribution.
- 2Compact design: Suitable for space-limited installations.
- 3Electronic fuse monitoring: EFM10 ensures real-time monitoring.
- 4Versatile mounting: Compatible with 60 mm busbar systems and floor mounting.
- 5Enhanced safety: Protects against electric shock with permanent switch-on and switch-off capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 400A, Size 1/2, 60mm busbar system, flat connection, 3P, electronic EFM10 fuse monitoring, 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base | Others | 32/70mm cover with contact protection, suitable for busbar and Rittal systems without base |
Fuse Monitoring | Electronic EFM10 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Specification | Size: 1/2 | Terminal Type | Flat Connection |
Rated Current In(A) | 400 | Specification | 3NP115【400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1153-1BC12 |
Specifications may be subject to change without notice
