Product Model

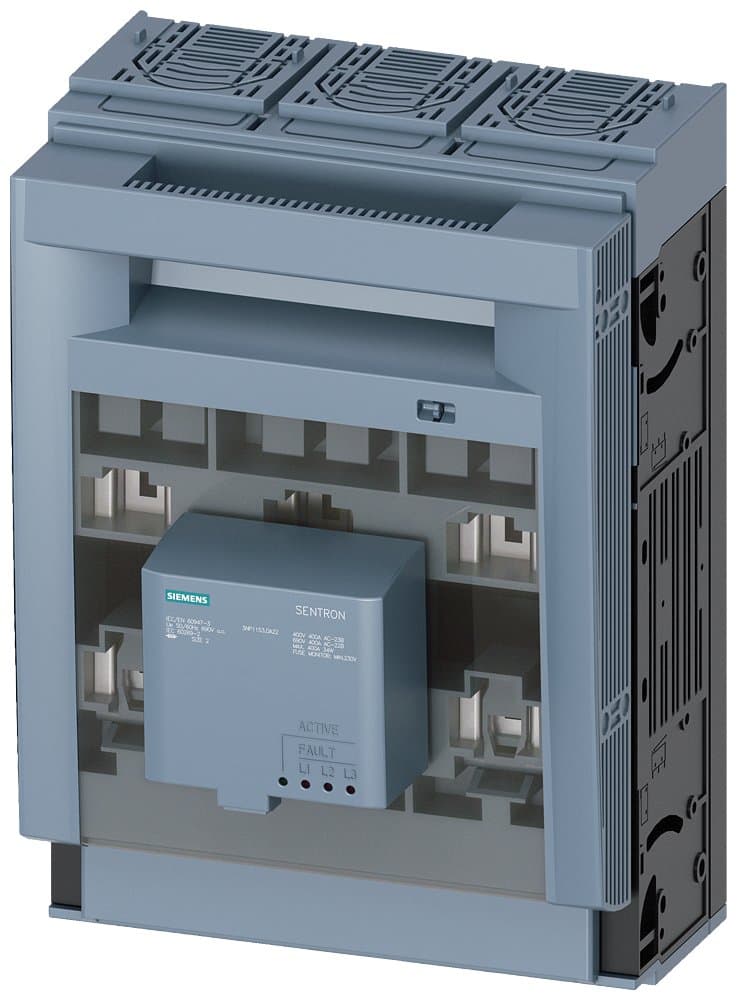

3NP1153-1DA22
Selling Points
- 1Enhanced Safety Features: Protects against electric shock with permanent switch-on and switch-off under load.
- 2Optimized Efficiency: Designed for low-voltage power distribution, ensuring optimal performance in various applications.
- 3Versatile Mounting Options: Available for floor mounting, standard mounting rail, and front mounting, catering to diverse installation needs.
- 4High Current Rating: Handles up to 400 A, making it suitable for demanding electrical installations.
- 5Compliance with Industry Standards: Meets IEC 60947-3 and UL 508 standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V): | 440 | AC Rated Voltage(V): | 690 |
Insulation Voltage(V): | 1000 | Number of Poles: | 3P |
Description | 3NP1, rated current 400A, Size 1/2, surface mounting, box terminal, 3P, electronic EFM10 fuse monitoring, | Fuse Monitoring: | Electronic EFM10 Fuse Monitoring |
Mounting Type: | Surface Mounting | Fuse Rating: | Size: 1/2 |
Terminal Type: | Box Terminal | Rated Current In(A): | 400 |
Specifications: | 3NP115【400A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1153-1DA22 |
Specifications may be subject to change without notice
