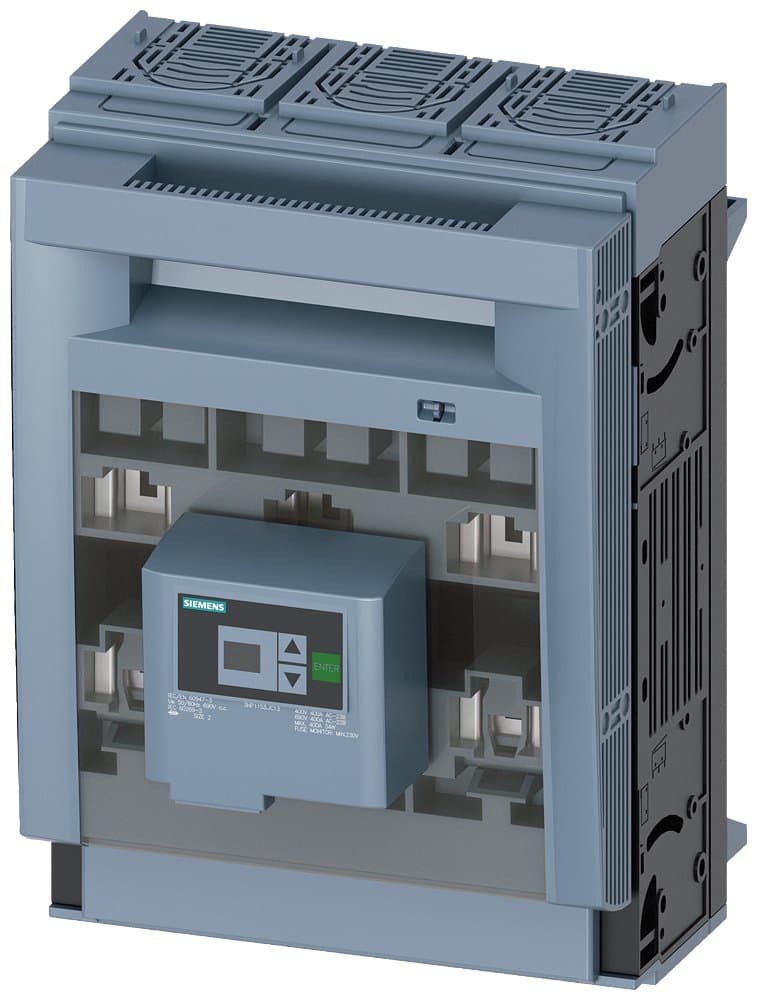

Product Model
3NP1153-1JC13
Selling Points
- 1Designed for Rittal busbar systems, ensuring seamless integration and performance.
- 2Protects users from electric shock with permanent switch-on and switch-off under load.
- 3Compatible with floor mounting, standard mounting rail, and busbar systems.
- 4Suitable for short-circuit and overload protection of persons, motors, installations, and generators.
- 5Meets IEC 60947-3 and UL 508 standards for electrical safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated Current 400A, Size 1/2, 60mm Busbar System, Flat Connection, 3P, Electronic EFM20 Fuse Monitoring, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Specification | Size: 1/2 | Terminal Type | Flat Connection |
Rated Current In(A) | 400 | Specifications | 3NP115【400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3NP1153-1JC13 |
Specifications may be subject to change without notice
