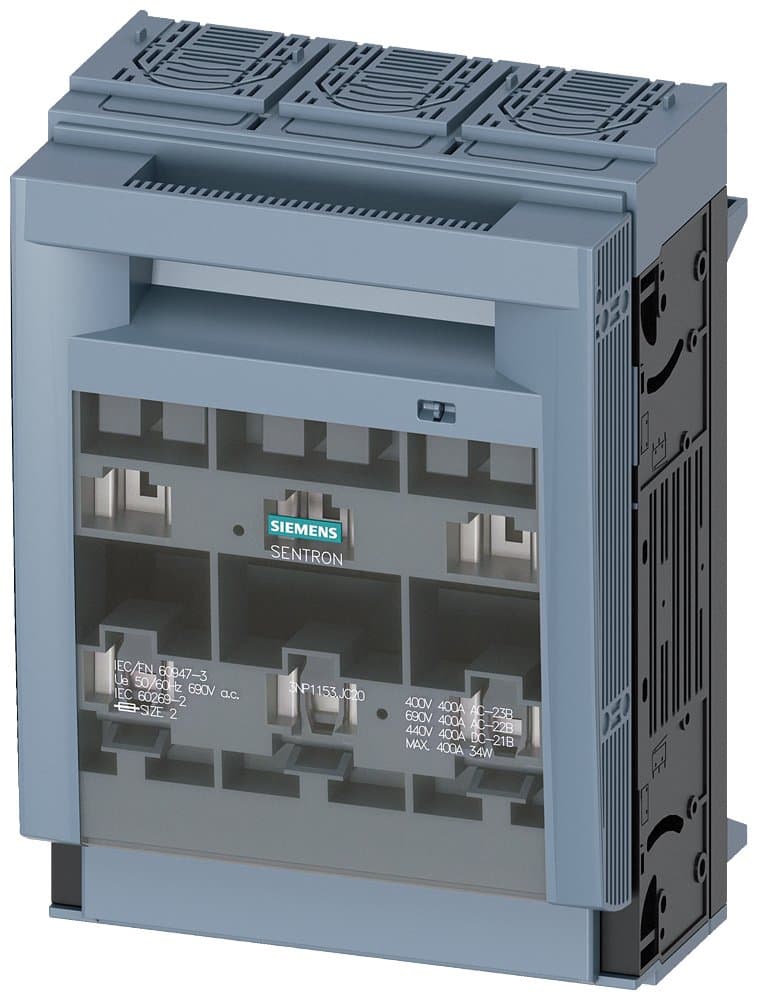

Product Model
3NP1153-1JC20
Selling Points
- 1High Current Rating: Handles up to 400 A for reliable power distribution.
- 23-Pole Configuration: Suitable for three-phase applications with NH2 connectors.
- 3Rittal Busbar System Compatibility: Designed specifically for use with Rittal busbar systems.
- 4Enhanced Safety Features: Permits permanent switch-on and switch-off under load, protecting against electric shock.
- 5Durable Construction: Built with robust materials for long-lasting performance in demanding electrical environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated current 400A, Size 1/2, 60mm Busbar System, Box Terminal, 3P, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
Installation Type | 60mm Busbar System | Fuse Rating | Size: 1/2 |
Terminal Type | Box Terminal | Rated Current In(A) | 400 |
Specifications | 3NP115【400A】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1153-1JC20 |
Specifications may be subject to change without notice
