Product Model

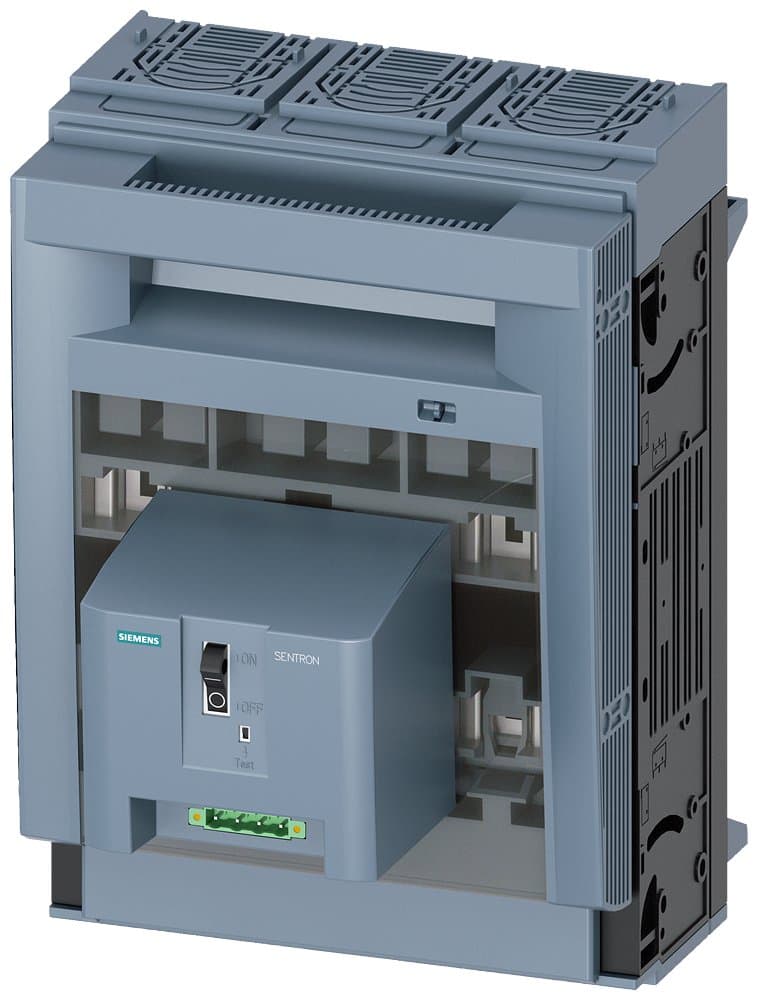

3NP1153-1JC21
Selling Points
- 1Saves space with a slim profile, perfect for limited spaces.
- 2Ensures reliable fuse monitoring with electromechanical functionality.
- 3Compatible with Rittal busbar systems and floor mounting options.
- 4Handles up to 400 A, suitable for demanding electrical applications.
- 5Protects against short circuits and overloads with robust design and monitoring capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated current 400A, Size 1/2, 60mm busbar system, box terminal, 3P, electromechanical fuse monitoring, suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electromechanical Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Specification | Size: 1/2 | Terminal Type | Box Terminal |
Rated Current In(A) | 400 | Specifications | 3NP115【400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1153-1JC21 |
Specifications may be subject to change without notice
