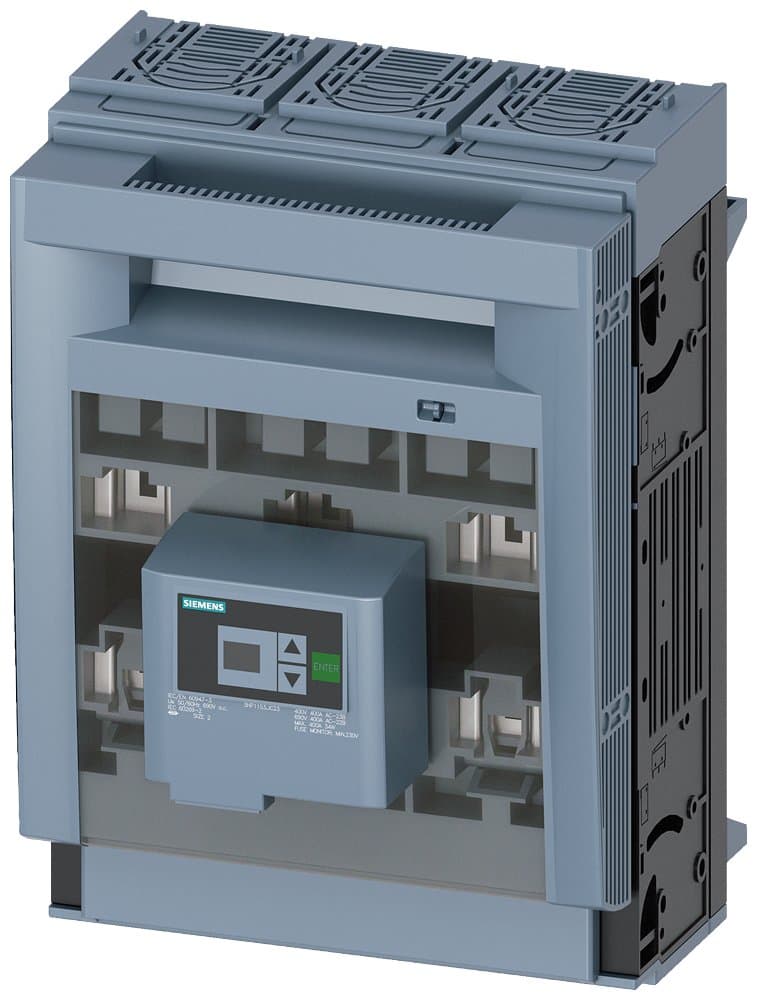

Product Model
3NP1153-1JC23
Selling Points
- 1High current capacity up to 400 A.
- 2Designed for Rittal busbar systems.
- 33-pole configuration for enhanced functionality.
- 4Robust construction for long-lasting performance.
- 5Meets stringent safety standards for electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated current 400A, Size 1/2, 60mm Busbar System, Box Terminal, 3P, Electronic EFM20 Fuse Monitoring, Suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Rating | Size: 1/2 | Terminal Type | Box Terminal |
Rated Current In(A) | 400 | Specifications | 3NP115【400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | EAR99 | AL | N |
Model Number | 3NP1153-1JC23 |
Specifications may be subject to change without notice
