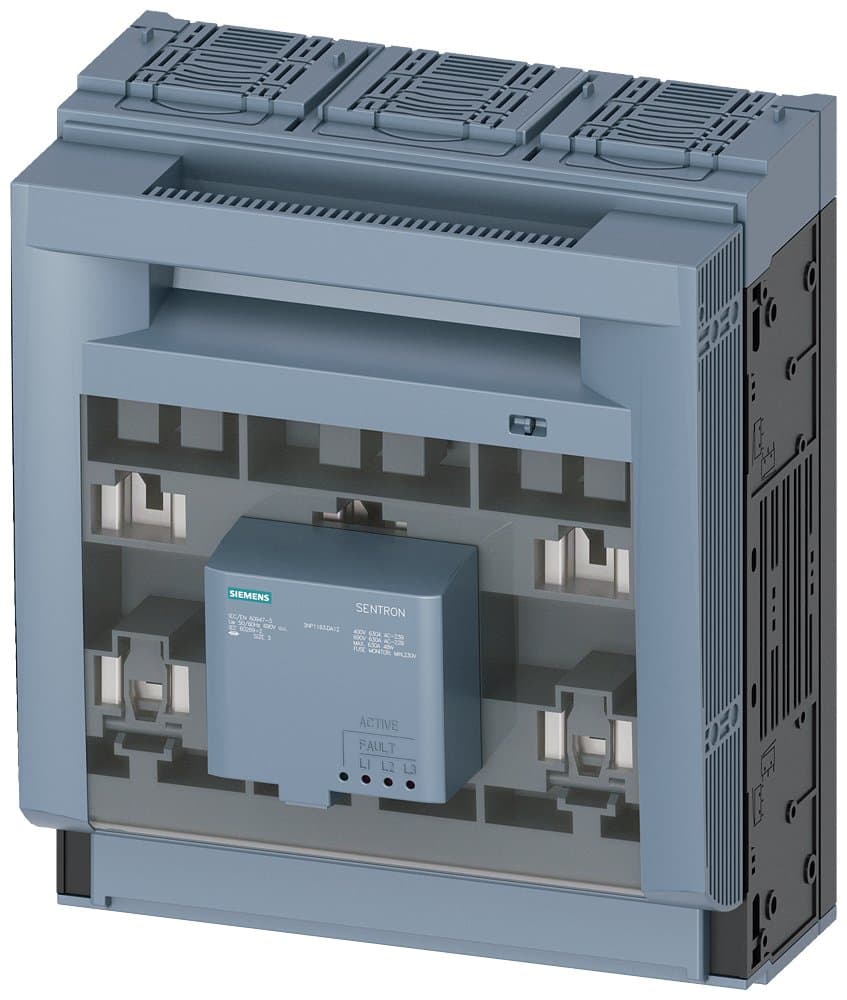

Product Model
3NP1163-1DA12
Selling Points
- 1Handles up to 630 A, ensuring robust protection for your electrical systems.
- 2Suitable for three-phase applications, providing comprehensive switching functionality.
- 3Compatible with NH3 terminals, enhancing flexibility in installation options.
- 4Equipped with fuse monitoring capabilities, ensuring real-time monitoring of electrical conditions.
- 5Designed for assembly and installation on mounting plates or flat terminals, offering versatile mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, rated current 630A, Size 2/3, surface mounting, flat connection, 3P, electronic EFM10 fuse monitoring, | Fuse Monitoring | Electronic EFM10 Fuse Monitoring |
Mounting Type | Surface Mounting | Fuse Specification | Size: 2/3 |
Terminal Type | Flat Connection | Rated Current In(A) | 630 |
Specifications | 3NP116【630】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1163-1DA12 |
Specifications may be subject to change without notice
