Product Model

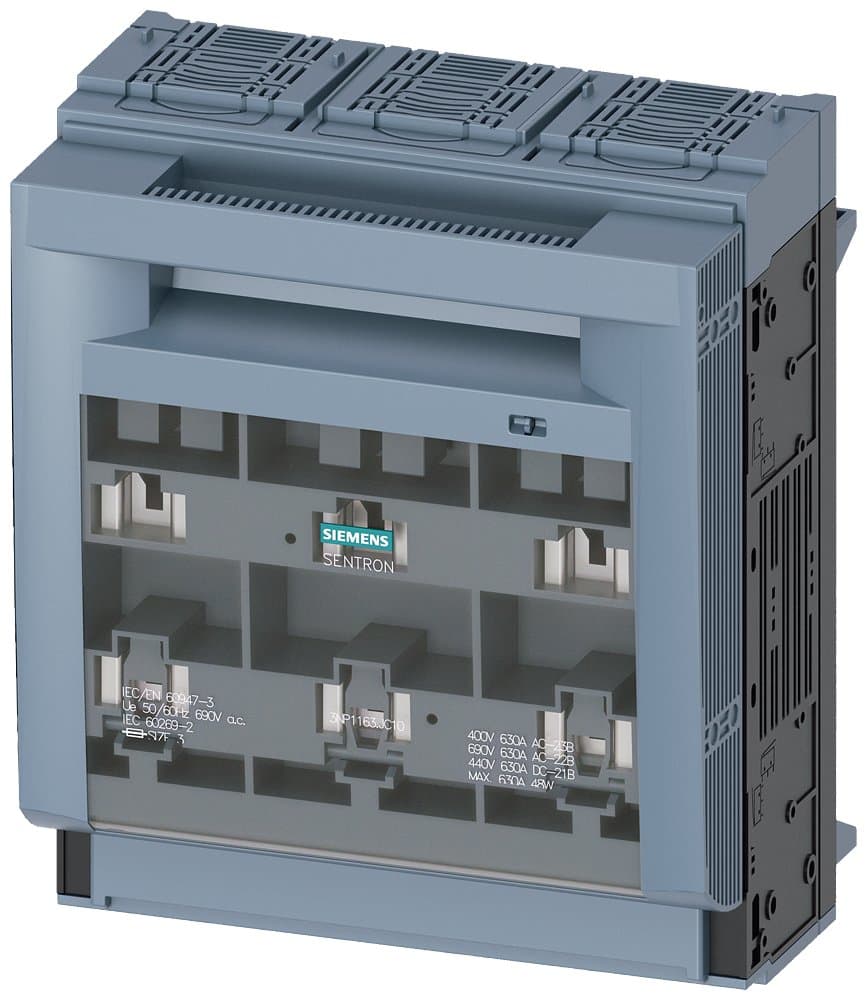

3NP1163-1JC10
Selling Points
- 1630 A for robust electrical applications.
- 2Suitable for floor mounting, standard mounting rail, and busbar systems.
- 3Meets DIN VDE 0100-200 and IEC 60947-3 standards for safety and performance.
- 4All poles switchable, including individual poles, for flexible operation.
- 5Built to withstand frequent switching under load, protecting against electric shock.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated current 630A, Size 2/3, 60mm Busbar System, Flat Connection, 3P, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
Installation Type | 60mm Busbar System | Fuse Rating | Size: 2/3 |
Terminal Type | Flat Connection | Rated Current In(A) | 630 |
Specifications | 3NP116【630】 | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | 9N9999 |
AL | N | Model Number | 3NP1163-1JC10 |
Specifications may be subject to change without notice
