Product Model

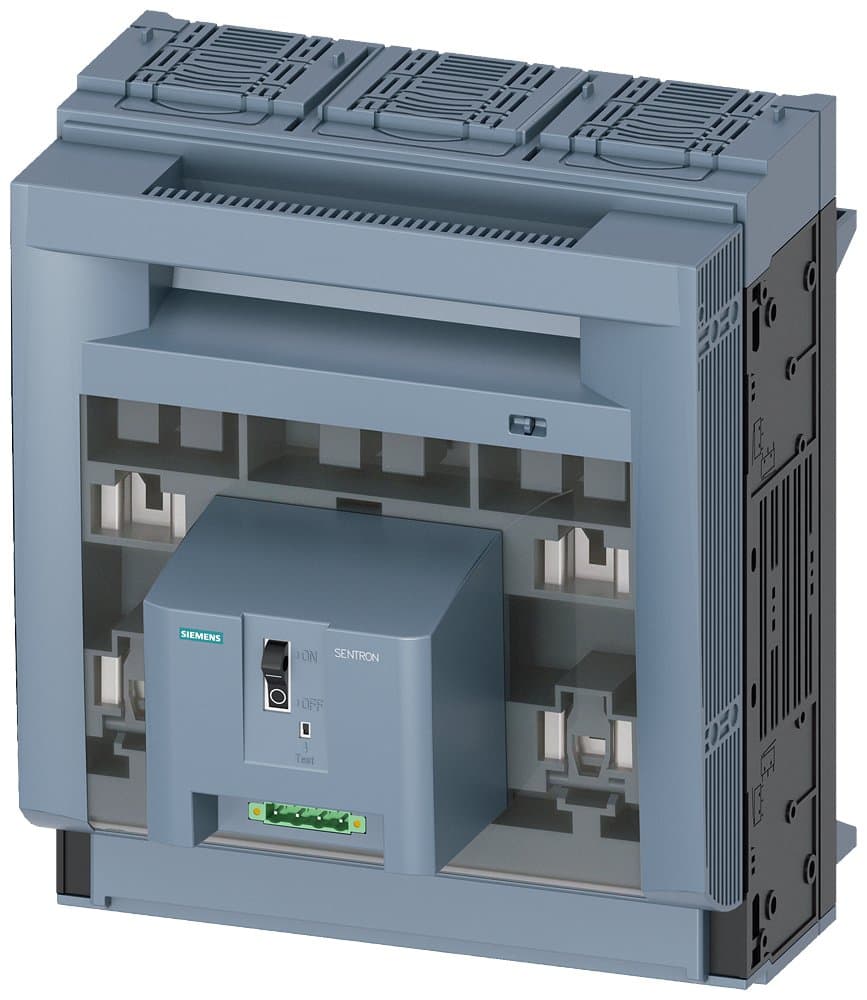

3NP1163-1JC11
Selling Points
- 1High current capacity of 630 A for efficient power distribution.
- 2Designed for Rittal busbar systems, ensuring seamless integration.
- 3Provides robust protection against electric shock with permanent switch-on and switch-off capabilities.
- 4Meets stringent safety standards with IP65 degree of protection.
- 5Configurable for various applications using Siemens' configurator tools.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated current 630A, Size 2/3, 60mm Busbar System, Flat Connection, 3P, Electromechanical Fuse Monitoring, Suitable for Rittal Riline60 system with base | Others | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electromechanical Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Specification | Size: 2/3 | Terminal Type | Flat Connection |
Rated Current In(A) | 630 | Specifications | 3NP116【630】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3NP1163-1JC11 |
Specifications may be subject to change without notice
