Product Model

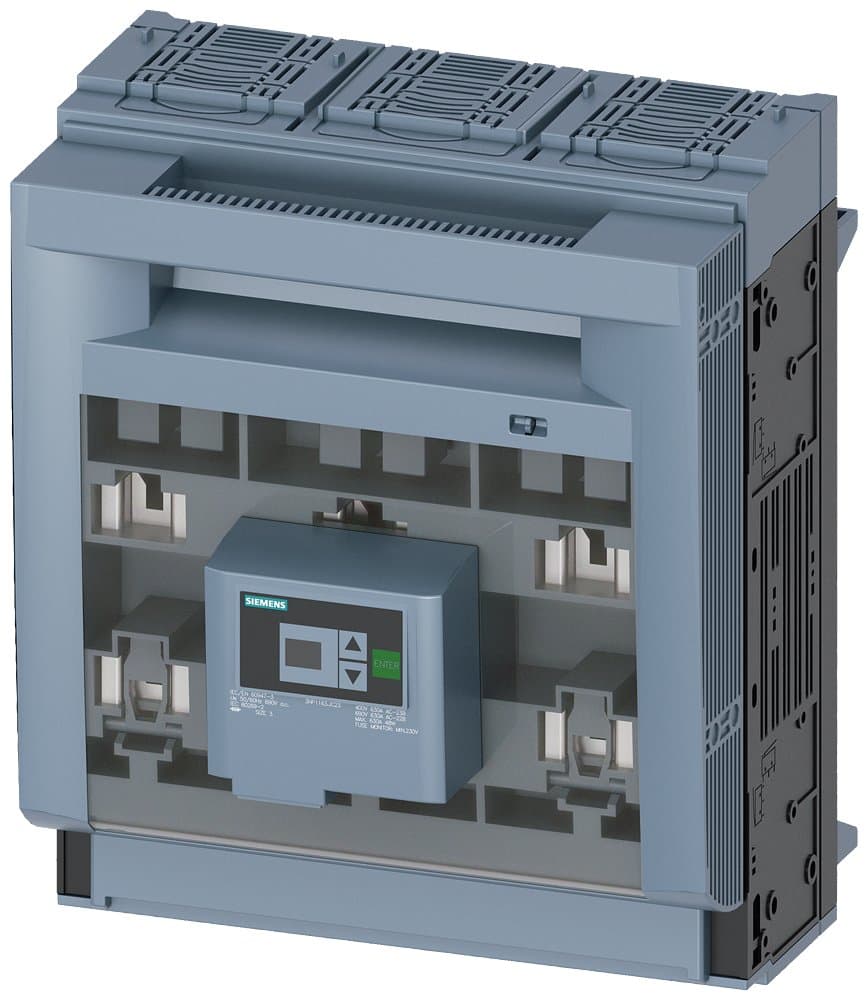

3NP1163-1JC23
Selling Points
- 1High Current Rating: Handles up to 630 A, suitable for demanding power distribution needs.
- 23-Pole Configuration: Provides three poles for comprehensive switching and disconnection capabilities.
- 3NH3 Terminal Type: Compatible with NH3 terminals, enhancing connectivity and reliability.
- 4Rittal Busbar Compatibility: Specifically designed for use with Rittal busbar systems, ensuring seamless integration.
- 5Safety Features: Equipped with advanced safety features to prevent electric shock and protect against short circuits and overloads.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage(V) | 440 | AC Rated Voltage(V) | 690 |
Insulation Voltage(V) | 1000 | Number of Poles | 3P |
Description | 3NP1, Rated current 630A, Size 2/3, 60mm Busbar System, Box Terminal, 3P, Electronic EFM20 Fuse Monitoring, Suitable for Rittal Riline60 system with base | Other | Suitable for Rittal Riline60 system with base |
Fuse Monitoring | Electronic EFM20 Fuse Monitoring | Installation Type | 60mm Busbar System |
Fuse Rating | Size:2/3 | Terminal Type | Box Terminal |
Rated Current In(A) | 630 | Specifications | 3NP116【630】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3NP1163-1JC23 |
Specifications may be subject to change without notice
