Product Model

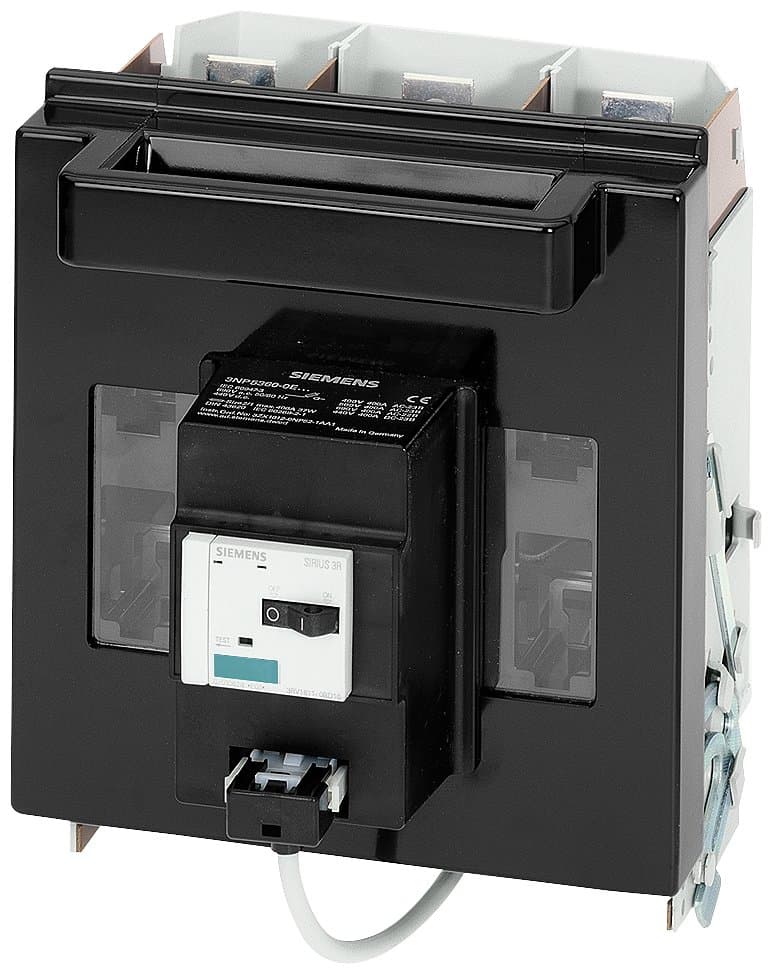

3NP5360-0EA86
Selling Points
- 1High-speed closing for enhanced operational efficiency.
- 2Secure connections with screw terminals.
- 3Reliable fuse monitoring through a 3RV system.
- 4Designed for assembly and installation on mounting plates.
- 5Suitable for 3-pole, NH2, 400 A applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
DC Insulation Voltage (V): | 440 | AC Rated Voltage (V): | 690 |
Insulation Voltage (V): | 690 | Description | 3NP5, rated current 400A, Size 1/2, surface mount flat connection 3PSIRUS circuit breaker electromechanical fuse monitoring with high-speed closing function, switch / 1NO+1NC, breaker / 1NO+1NC, |
Fuse Monitoring: | SIRUS circuit breaker electromechanical fuse monitoring | Mounting Type: | Surface mount |
Fuse Rating: | Size: 1/2 | Terminal Type: | Flat connection |
Others: | With high-speed closing function, switch / 1NO+1NC breaker / 1NO+1NC | Poles: | 3P |
In(A): | 400 | Specifications | 3NP53【400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 3NP5360-0EA86 |
Specifications may be subject to change without notice
