Product Model

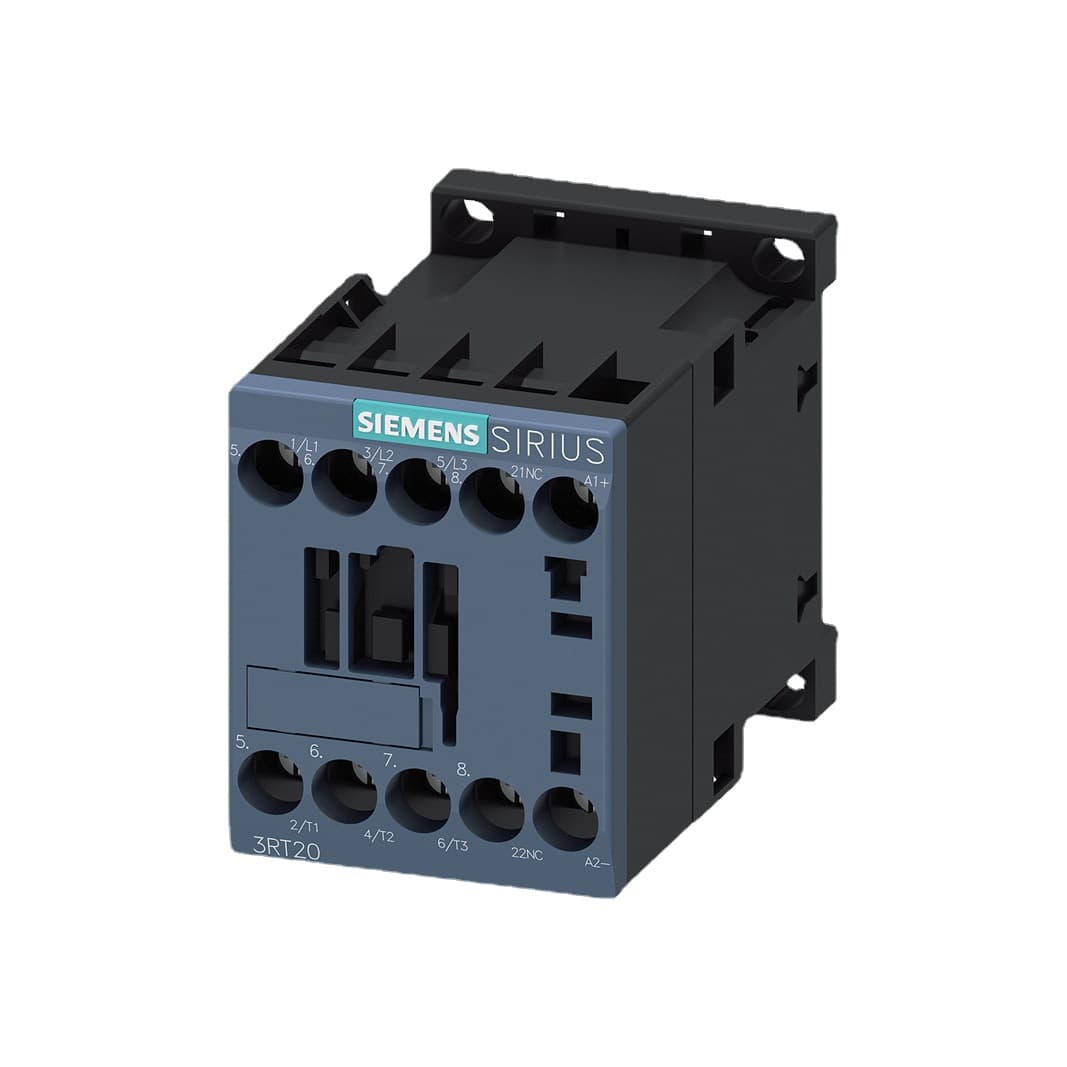

3RT2016-1DE47
Selling Points
- 1High Power Handling: 4 kW / 400 V, suitable for demanding industrial applications.
- 2Reliable Operation: AC-3e/AC-3 certification ensures reliable performance under various conditions.
- 3Versatile Connectivity: 3-pole design with screw terminal and removable auxiliary switch.
- 4Safety Features: Varistor plugged on for enhanced safety and protection.
- 5Compliance with Regulations: Meets RoHS directive since 2006 and WEEE take-back obligation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contact Configuration | 3NO | Mechanical Life | 30 million operations (without auxiliary contacts on the main contact) |
Operating Temperature Range | -25~+60℃ | Wiring Method | Screw Terminal |
Auxiliary Contacts | 3NO2NC | Coil Voltage | 60V DC |
Coil Power Supply | DC | Coil Frequency | DC |
Number of Poles | 3P | Specification | S00 |
Rated Current AC-3 | 9A | Product Type | Contactor |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | N | AL | N |
Model | 3RT2016-1DE47 |
Specifications may be subject to change without notice
