Product Model

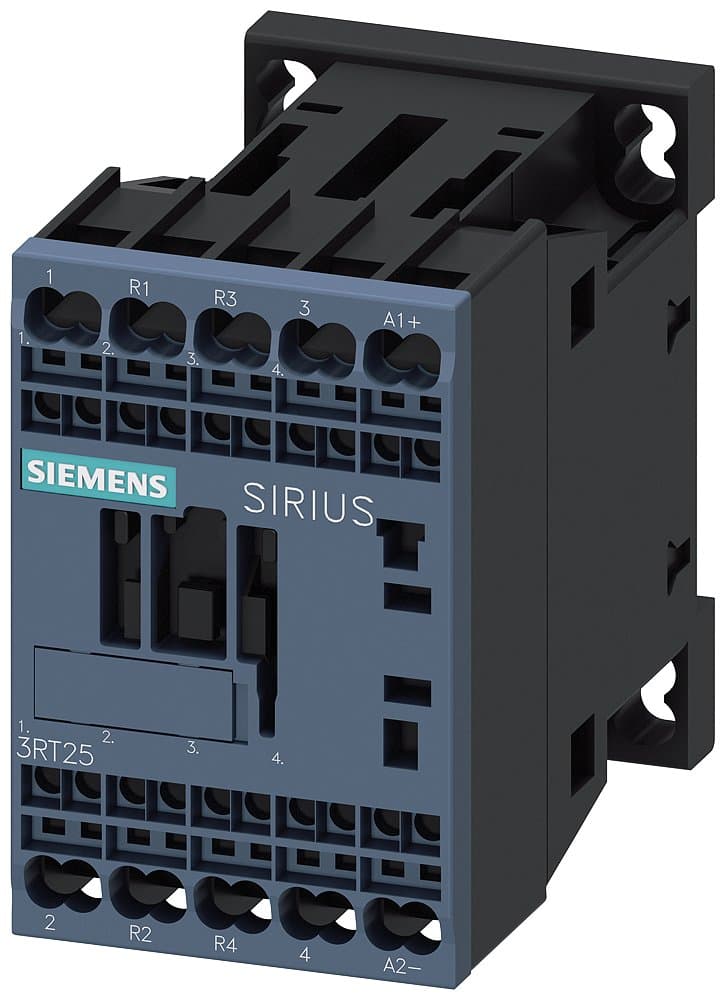

3RT2516-2XF40-0LA2
Selling Points
- 1Engineered for continuous operation in railway environments with minimal downtime.
- 2Withstands large temperature fluctuations, condensation, shock, vibration, and electromagnetic interference.
- 3Spring-loaded or screw-type connection system on terminals, including ring cable lug connection options.
- 4Operates within an extended range of 0.7 to 1.25 times the nominal voltage (Us).
- 5Compatible with IO-Link for seamless communication in stationary applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Main Contact Configuration | 2NO+2NC | Wiring Method | Spring Terminal |
Auxiliary Contacts | None | Coil Frequency | DC |
Coil Power Supply | DC | Number of Poles | 4P |
Rated Current AC-3 | 9A | Specification | S00 |
Product Type | Four-pole Contactor | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3RT2516-2XF40-0LA2 |
Specifications may be subject to change without notice
