Product Model

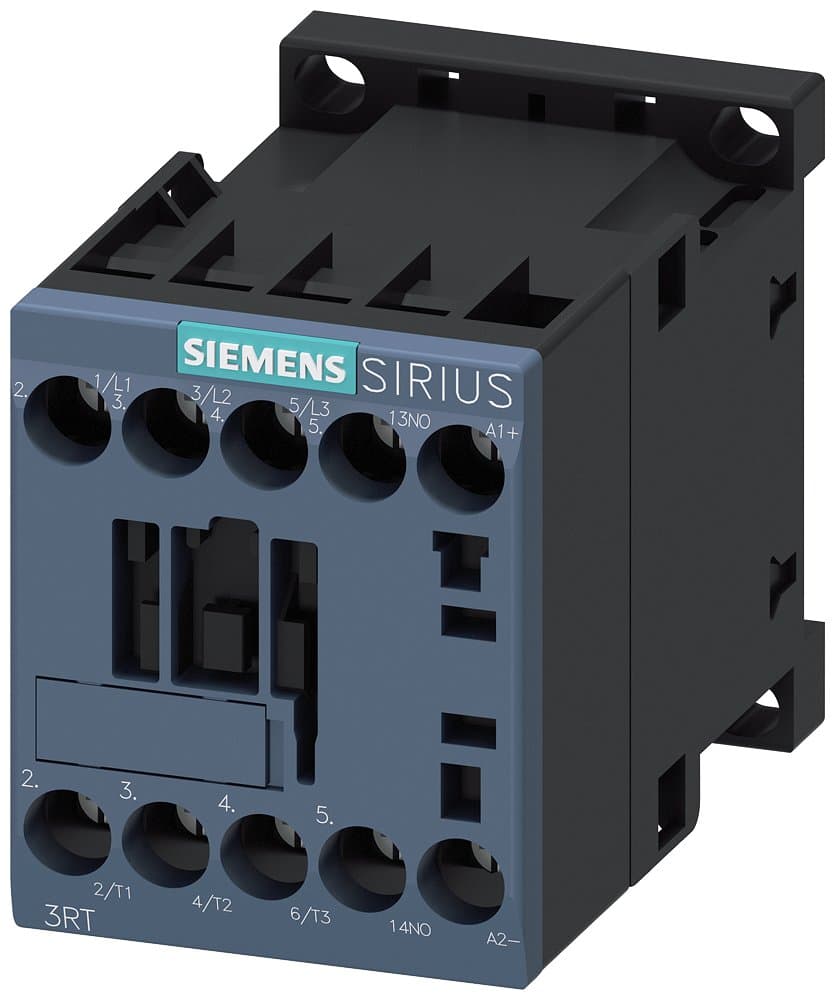

3RT6015-1KB41
Selling Points
- 1High-quality power contactor for AC3 applications up to 3 kW.
- 2Robust design with 1 NO 3-pole AUX contact for reliable operation.
- 3Compatible with 16.8 to 30 V DC voltage range.
- 4Compact size with S00 screw terminal for easy installation.
- 5Compliant with RoHS directives since May 1, 2012.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Remarks | Control voltage range is (0.7-1.25)*Us, surge suppressor integrated | Main Contact Form | 3NO |
Mechanical Life | 30 million operations (excluding auxiliary contacts) | Operating Temperature Range | -25~+60℃ |
Auxiliary Contacts | 1NO | Coil Voltage | 24V DC |
Coil Power Supply | DC | Coil Frequency | DC |
Number of Poles | 3P | Specification | S00 |
Rated Current AC-3 | 7A | Product Type | Wide Voltage Coil Contactor |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model | 3RT6015-1KB41 |
Specifications may be subject to change without notice
