Product Model

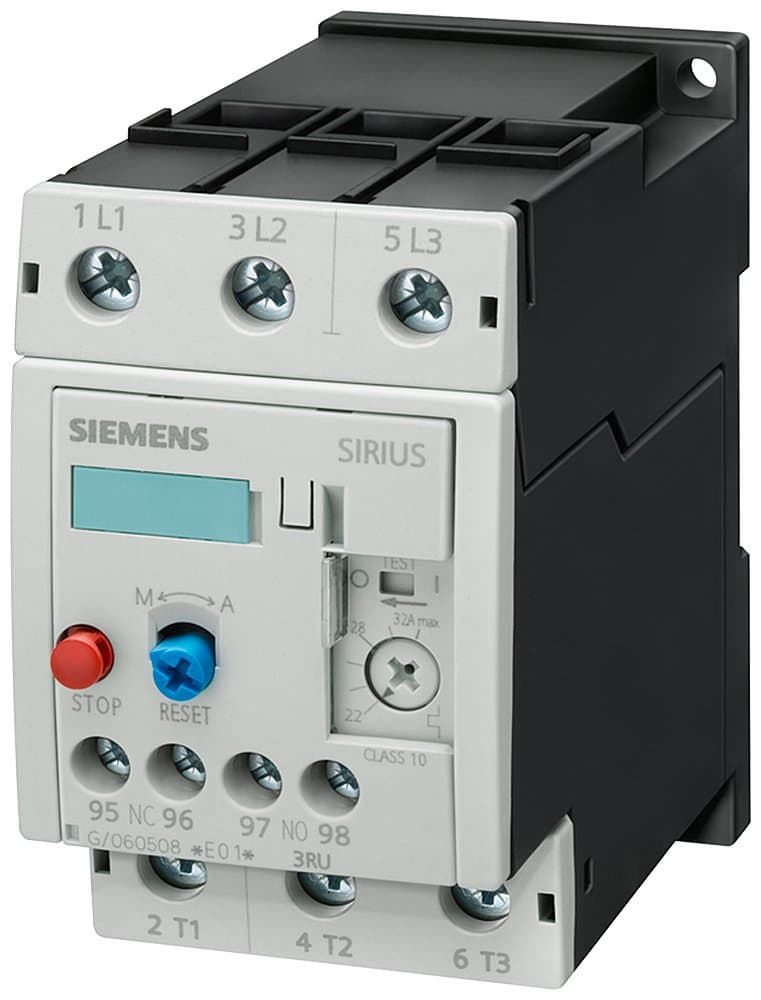

3RU5136-4GB1
Selling Points
- 1High Current Rating: Protects motors with a current range of 36-45 A.
- 2Class 10 Rating: Ensures reliable and precise motor protection.
- 3Manual/Auto Reset: Offers both manual and automatic reset options for convenience.
- 4Screw Terminal Mounting: Easy installation via screw terminals for main and auxiliary circuits.
- 5Compliant with RoHS Directive: Meets substance restrictions since July 2006, ensuring environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating Ambient Temperature | -40~+70°C | Operating Altitude | Up to 2000m |
Rated Voltage | AC400V | Mounting Method | Screw Terminal Connection, Independent Installation |
Specification | S2 | Load Rating | CLASS 10 |
Current Setting Range | 36-45A | Rated Current (AC-3) | Max 45A for S2 Size |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3RU5136-4GB1 |
Specifications may be subject to change without notice
