Product Model

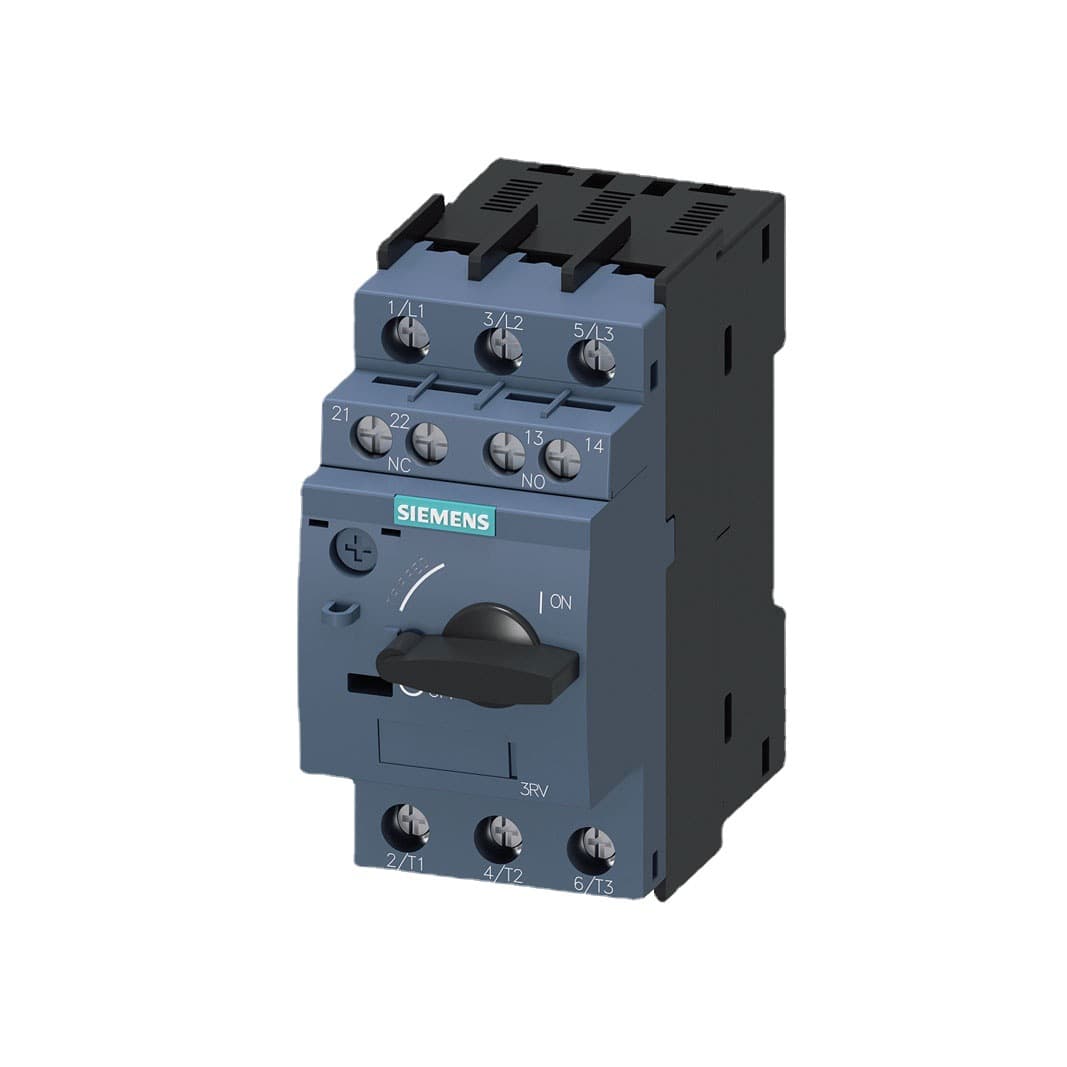

3RV6011-1BA10
Selling Points
- 1Advanced overload protection with adjustable response current.
- 2Phase disturbance recognition for enhanced safety.
- 3Robust construction with screw-type terminals for secure connections.
- 4Finger-safe design for protection against electrical shock.
- 5Compatible with 400 V AC-3 and 690 V operating voltages.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Frame Current Rating | Maximum 16A | Electrical Life | 100,000 operations |
Mechanical Life | 100,000 operations | Wiring Method | Screw Terminal |
Auxiliary Contacts | Without Auxiliary Contacts | Number of Poles | 3P |
Load Rating | Trip Class 10 | Breaking Capacity Icu (KA) | 100kA |
Current Setting Range | 1.4-2A | Rated Current (AC-3) | 2A |
Specification | S00 (45mm wide) | Type | Motor Overload and Short Circuit Protection |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3RV6011-1BA10 |
Specifications may be subject to change without notice
