Product Model

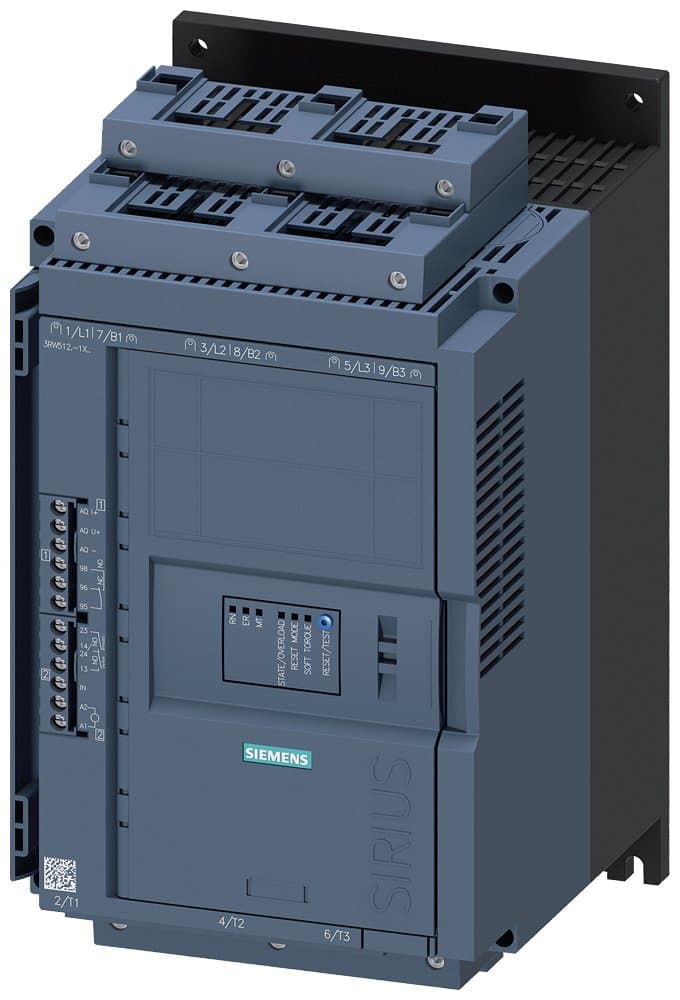

3RW5125-1XC14
Selling Points
- 1Efficient Motor Control: Smoothly starts and stops motors with parameterizable starting voltage and ramp-up time.
- 2Advanced Protection: Integrated electronic motor overload protection with adjustable trip classes for enhanced safety.
- 3Customizable Settings: Adjustable current limit to avoid current peaks and soft torque for smooth ramp-up and run-down.
- 4Enhanced Diagnostics: Extended operating and diagnostic functions via the optional 3RW5 HMI Standard or High Feature.
- 5Integration Capabilities: Compatible with bus systems through the optional 3RW5 communication module for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Control Method | AC | Integrated Motor Overload Protection | true |
Rated Ambient Temperature (Without Derating) | 40°C | Rated Power (Three-phase Motor, Internal Delta Connection, 400V) | 55kW |
Rated Power (Three-phase Motor, Internal Delta Connection, 230V) | 30kW | Rated Power (Three-phase Motor, Standard Circuit, 400V) | 30kW |
Rated Power (Three-phase Motor, Standard Circuit, 230V) | 18.5kW | Rated Operating Current Ie (40°C Tu) | 63A |
Protection Method IP | IP00 | Minimum Rated Control Voltage Us (AC 60Hz) | 110-250V |
Minimum Rated Control Voltage Us (AC 50Hz) | 110-250V | Rated Operating Voltage | 200-480V |
Product Type | 3RW5 Soft Starter | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | 9N9999 |
AL | N | Model Number | 3RW5125-1XC14 |
Specifications may be subject to change without notice
