Product Model

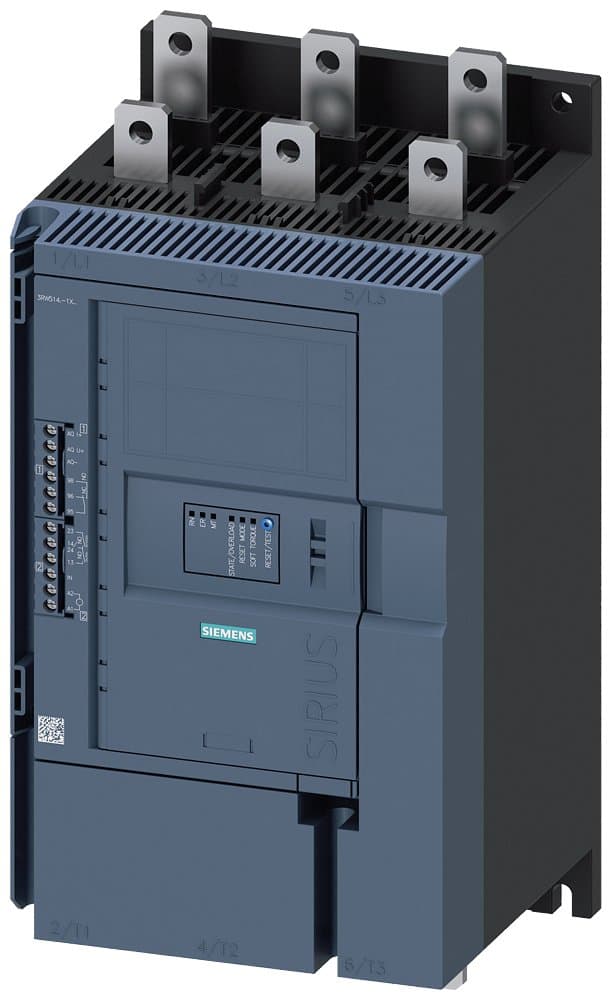

3RW5146-1XC14
Selling Points
- 1Advanced motor control with parameterizable starting and stopping times for smooth ramp-up and run-down.
- 2Integrated electronic motor overload protection with adjustable trip classes (Class 10A, 10E, 20E, Class OFF).
- 3Intrinsic device protection against overload ensures reliable operation.
- 4Optional 3RW5 HMI Standard or High Feature for extended operating and diagnostic functions.
- 5Firmware updates available to upgrade device functionality and ensure compatibility with evolving systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Control Method | AC | Integrated Motor Overload Protection | true |
Rated Ambient Temperature (Without Derating) | 40°C | Rated Power (Three-phase Motor, Internal Delta Connection, 400V) | 355kW |
Rated Power (Three-phase Motor, Internal Delta Connection, 230V) | 200kW | Rated Power (Three-phase Motor, Standard Circuit, 400V) | 200kW |
Rated Power (Three-phase Motor, Standard Circuit, 230V) | 110kW | Rated Operating Current Ie (40°C Tu) | 370A |
Protection Method IP | IP00 | Minimum Rated Control Voltage Us (AC 60Hz) | 110-250V |
Minimum Rated Control Voltage Us (AC 50Hz) | 110-250V | Rated Operating Voltage | 200-480V |
Product Type | 3RW5 Soft Starter | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | 3RW5146-1XC14 |
Specifications may be subject to change without notice
