Product Model

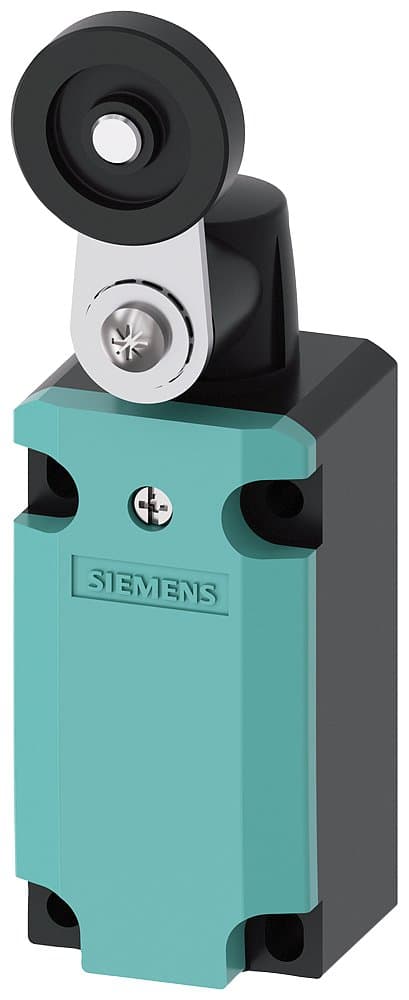

3SE5132-0CJ27
Selling Points
- 1High-quality plastic enclosure for durability.
- 2Twist lever for easy operation.
- 3Compliant with EN 50041 standards.
- 4Device connection: 1 x M20 x 1.5.
- 5Quick action contacts (1 NO/1 NC).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sensor Length | 136mm | Sensor Height | 59.3mm |
Sensor Width | 40mm | Number of Transfer Contacts | 0 |
Number of Make Contacts | 1 | Number of Break Contacts | 1 |
Rated Operating Current Ie (DC-13, 24V) | 3A | Rated Operating Current Ie (AC-15, 24V) | 3A |
Number of Safety-Related Auxiliary Contacts | 1 | Enclosure Material | Plastic |
Product Type | Single Position Limit Switch | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 3SE5132-0CJ27 |
Specifications may be subject to change without notice
