Product Model

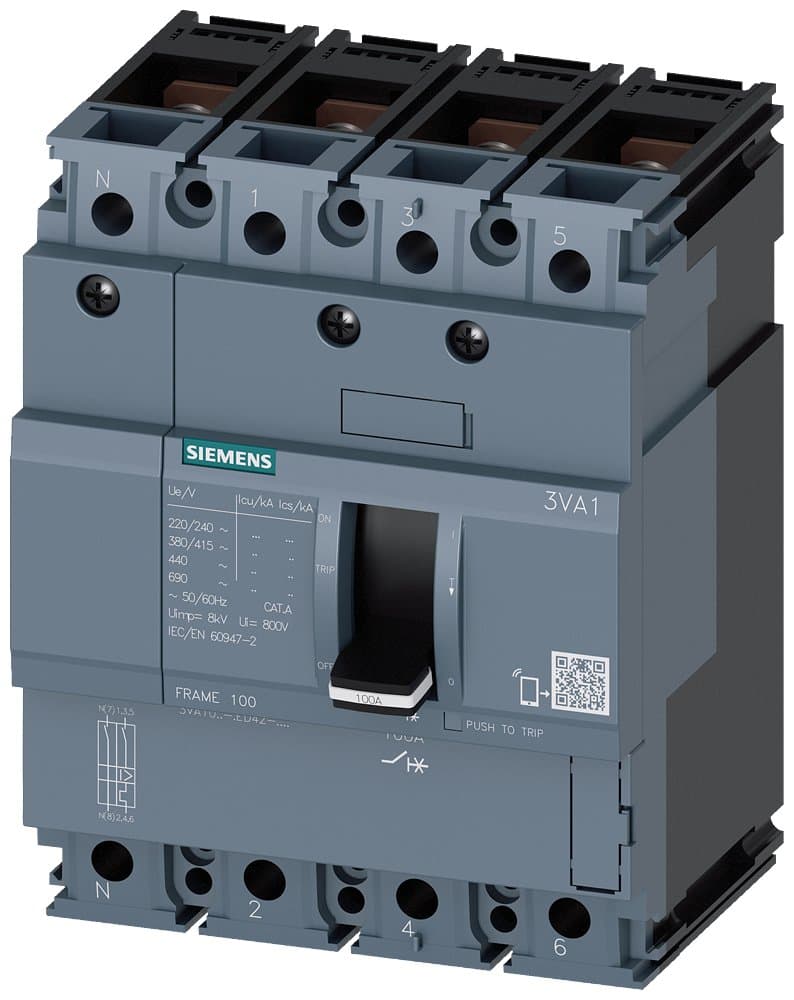

3VA1080-2ED42-0AA0
Selling Points
- 1Designed with TM210 overcurrent release for reliable line protection.
- 2Capable of breaking currents up to 16 kA at 415 V.
- 3Includes fixed short-circuit protection with Ir=80A.
- 4Compact dimensions with a height of 130 mm and width of 101.6 mm.
- 5Suitable for 4-pole applications in AC and DC networks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 16 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA1B100 R80 TM210 F/4P; 3VA1_100 dimensions; Rated current 80A; Interrupting rating B:16kA; Trip unit TM210; |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210 [LI fixed, line protection] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 16 | Interrupting Rating: | B:16kA |
Rated Current In(A): | 80 | Specifications: | 100 [16-100A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VA1080-2ED42-0AA0 |
Specifications may be subject to change without notice
