Product Model

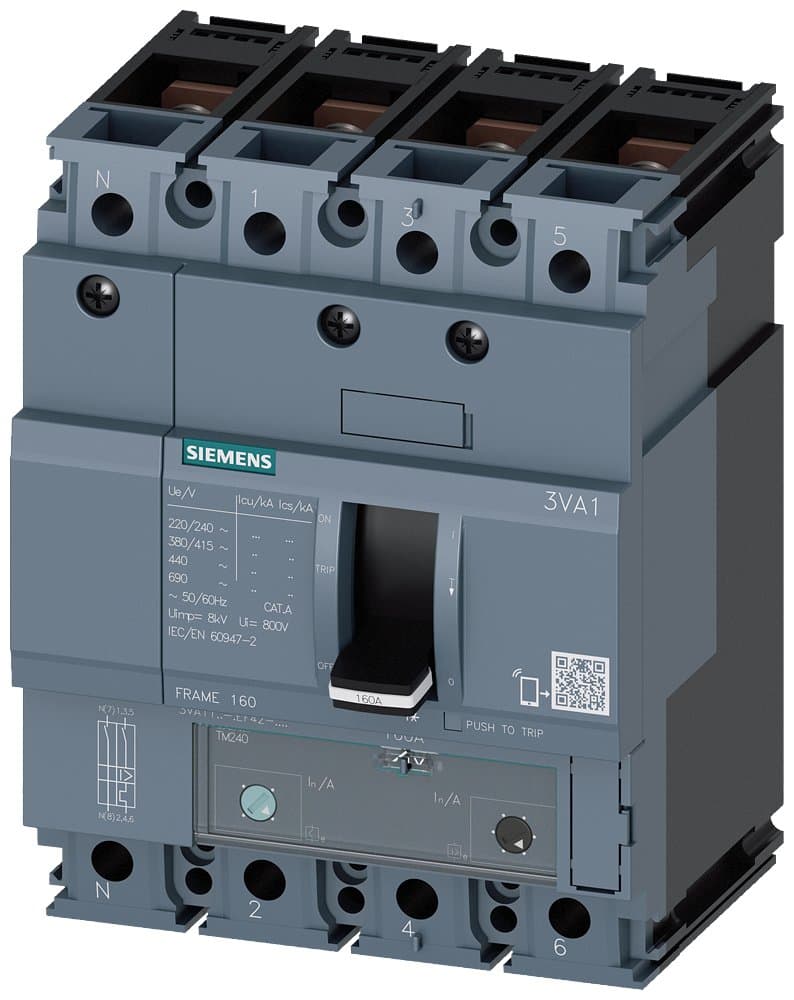

3VA1110-5EF42-0AA0
Selling Points
- 1The 3VA1110-5EF42-0AA0 circuit breaker features a breaking capacity of 55 kA at 415 V, ensuring reliable protection against short circuits.
- 2Equipped with thermal-magnetic trip units and overload protection up to 100 A, this circuit breaker provides comprehensive line protection.
- 3Compatible with various bus systems, including PROFIBUS and PROFINET, for seamless integration into automation solutions.
- 4Compact dimensions (70 mm mounting depth and 45 mm cover size) make it ideal for plant areas and electrical installations.
- 5Offers a wide range of modular and easy-to-fit internal accessories for diverse functions and flexible use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA1M160 R100 TM240 F/4P; 3VA1_160 dimensions; Rated current 100A; Interrupting rating M: 55 kA; Trip unit TM240; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240 [Thermal Magnetic Type LI] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M: 55 kA |
Rated Current In(A): | 100 | Specifications: | 160 [1-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VA1110-5EF42-0AA0 |
Specifications may be subject to change without notice
