Product Model

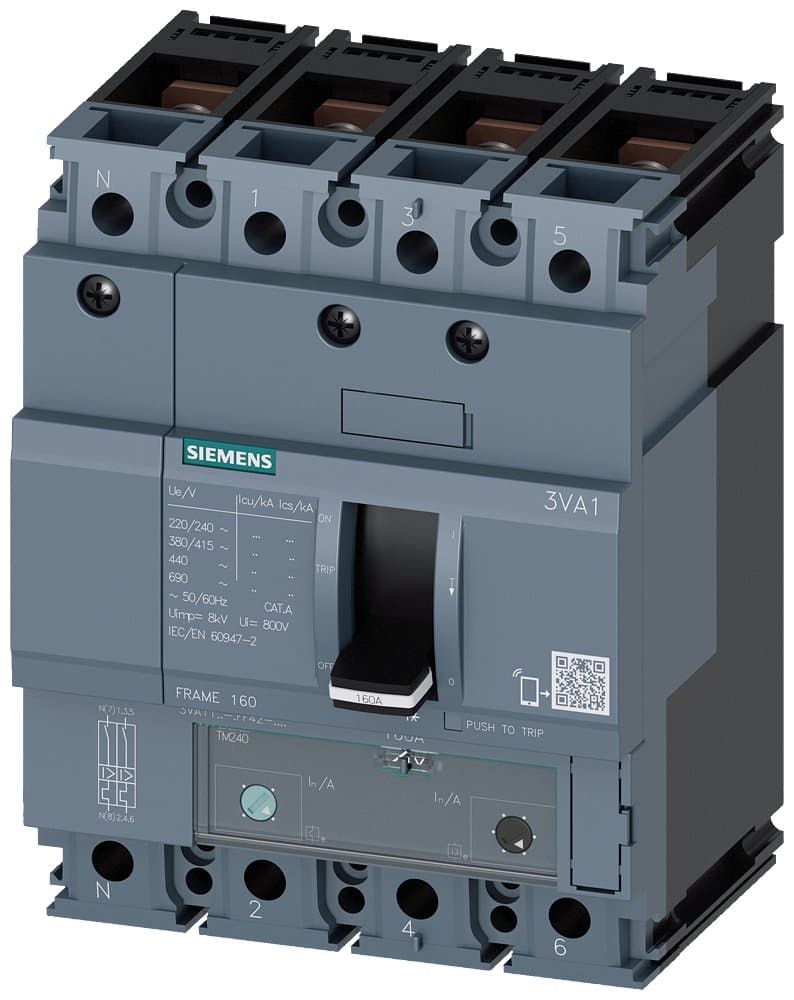

3VA1120-3GF42-0AA0
Selling Points
- 125kA at 415V for reliable short-circuit protection.
- 220A overload protection ensures safe operation.
- 3Combines thermal and magnetic elements for precise overcurrent detection.
- 4130mm height, 101.6mm width, and 70mm depth for easy installation.
- 58,000 switching cycles at AC-1 conditions for prolonged service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics (kA): @400V or 415V | 25 | Rated Voltage (V): | 690 |
Number of Poles: | 4P | Description | 3VA1N160 R20 TM240N F/4P; 3VA1_160 dimensions; Rated Current 20A; Interrupting Rating N: 25 kA; Trip Unit TM240N; |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM240N [Thermal Magnetic LI] |
Rated Ultimate Breaking Capacity Icu (kA): @400V or 415V | 25 | Interrupting Rating: | N: 25 kA |
Rated Current In (A): | 20 | Specifications: | 160 [1-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VA1120-3GF42-0AA0 |
Specifications may be subject to change without notice
