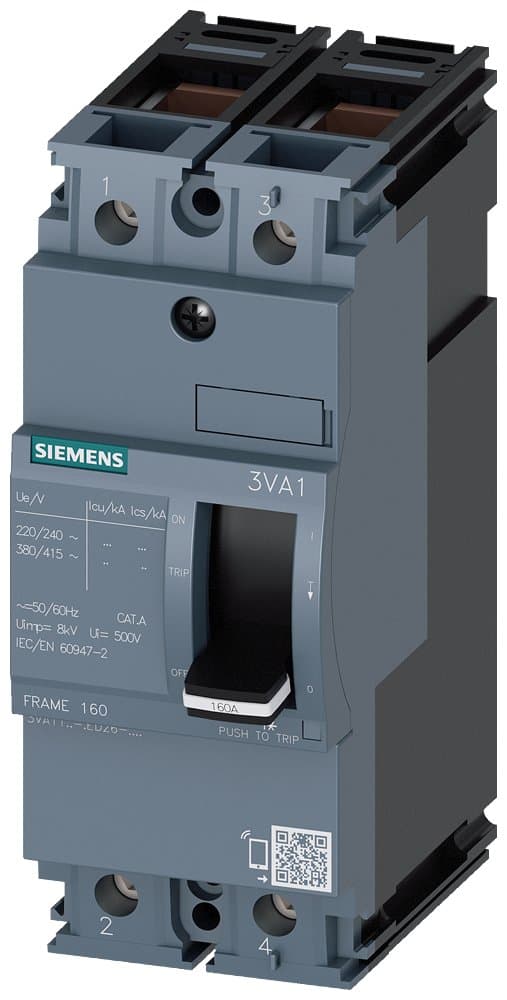

Product Model
3VA1132-3ED26-0AA0
Selling Points
- 1Robust Line Protection: Provides reliable short-circuit and overload protection with a breaking capacity of 25 kA at 415 V.
- 2Compact Design: Features a compact mounting depth of 70 mm and a cover size of 45 mm, ideal for space-constrained installations.
- 3Versatile Applications: Suitable for use in three-phase networks, AC networks, 400 Hz applications, and with DC currents.
- 4Standardized Accessories: Offers a range of standardized accessories that can be used across various sizes of circuit breakers, reducing installation costs.
- 5Thermal-Magnetic Trip Unit: Equipped with a thermal-magnetic trip unit for economical and cost-efficient installations up to 250 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Interrupting Capacity Ics(kA):@400V or 415V | 25 | Rated Voltage(V): | 415 |
Number of Poles: | 2P | Description | 3VA1N160 R32 TM210 F/2P; 3VA1_160 dimensions; Rated current 32A; Interrupting rating N:25kA; Trip unit TM210; F; 2P |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, then select the trip unit) | TM210【LI fixed, line protection】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 25 | Interrupting Rating: | N:25kA |
Rated Current In(A): | 32 | Specifications: | 160【1-160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VA1132-3ED26-0AA0 |
Specifications may be subject to change without notice
