Product Model

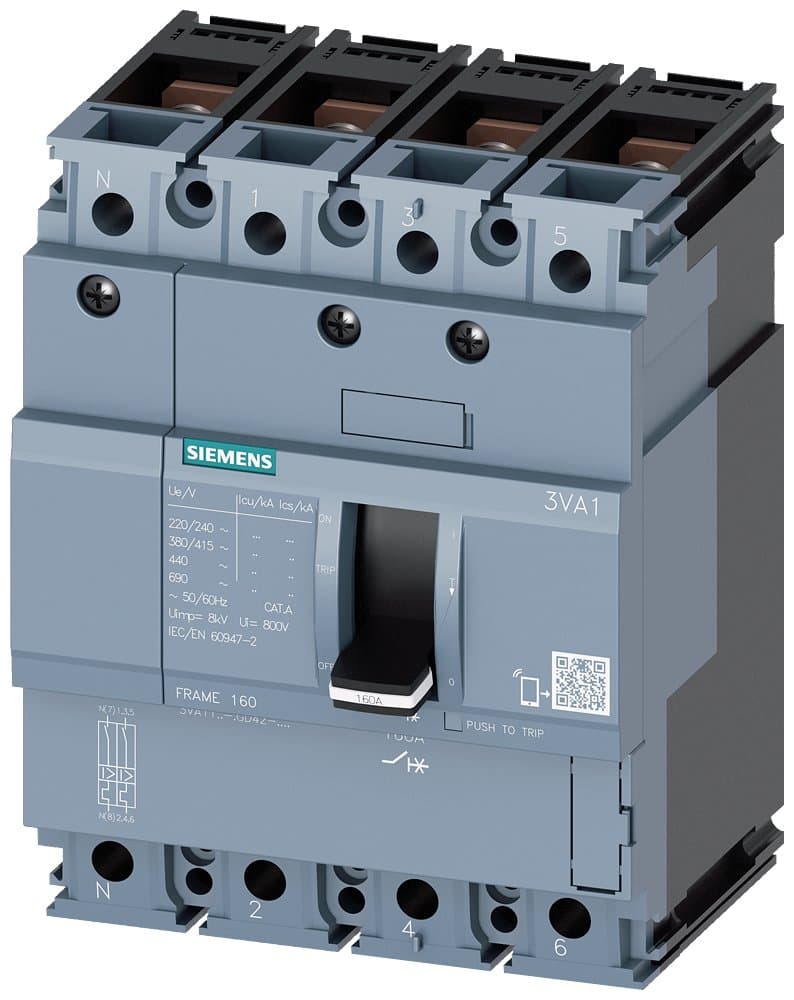

3VA1180-3GD42-0AA0
Selling Points
- 1High breaking capacity of 25 kA at 415 V.
- 2Thermal-magnetic trip unit for reliable overcurrent protection.
- 3Robust line protection with TM210 and FTFM designs.
- 4IEC frame 160 with 80 A overload protection.
- 5Fully tested and available with a 2-Year warranty.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 25 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA1N160 R80 TM210N F/4P; 3VA1_160 dimensions; Rated current 80A; Interrupting rating N: 25 kA; Trip unit TM210N; |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210N [LI fixed, with N-phase protection] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 25 | Interrupting Rating: | N: 25 kA |
Rated Current In(A): | 80 | Specifications: | 160 [1-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VA1180-3GD42-0AA0 |
Specifications may be subject to change without notice
