Product Model

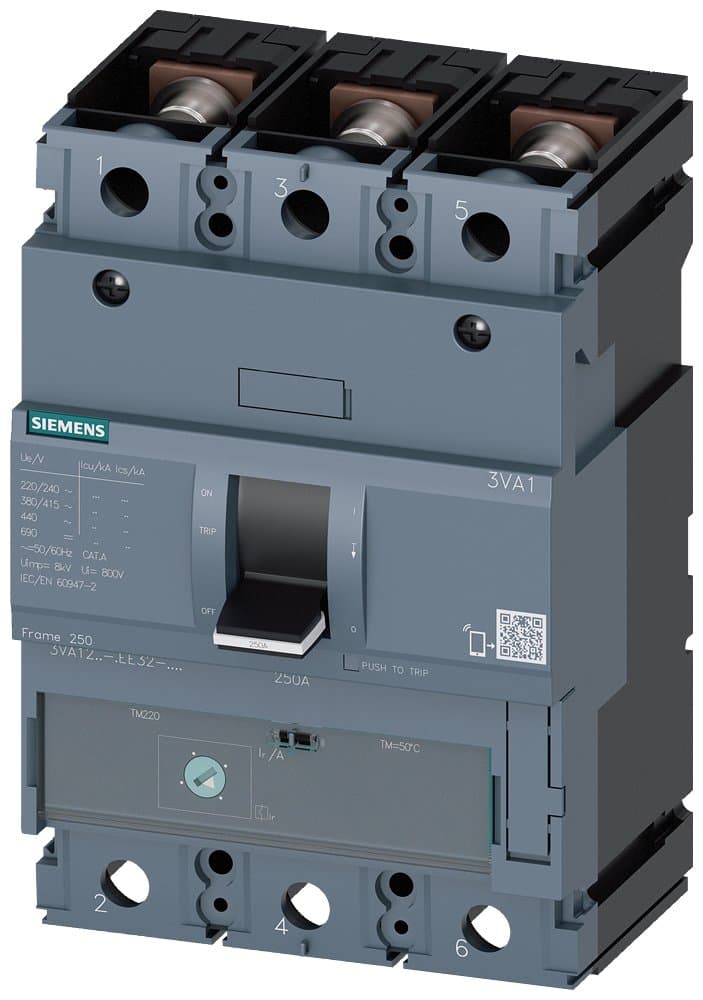

3VA1216-5EE32-0AA0
Selling Points
- 1Adaptable to various applications with a wide range of accessories.
- 2Includes residual current protection and instantaneous short-circuit protection.
- 3Available in fixed-mounting, plug-in, and draw-out technologies.
- 4Electronic Trip Units (ETUs) provide metering functions and communication capabilities.
- 5Offers selective protection response in the rated operational current interval of 1 : 2.5.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Interrupting Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA1M250 R160 TM220 F/3P; Rated Current 160A; Trip Unit TM220; Interrupting Rating M:55kA; 3P; F: Fixed Mounting |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM220【L adjustable, I fixed】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 160 | Specifications: | 250【160-250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA1216-5EE32-0AA0 |
Specifications may be subject to change without notice
