Product Model

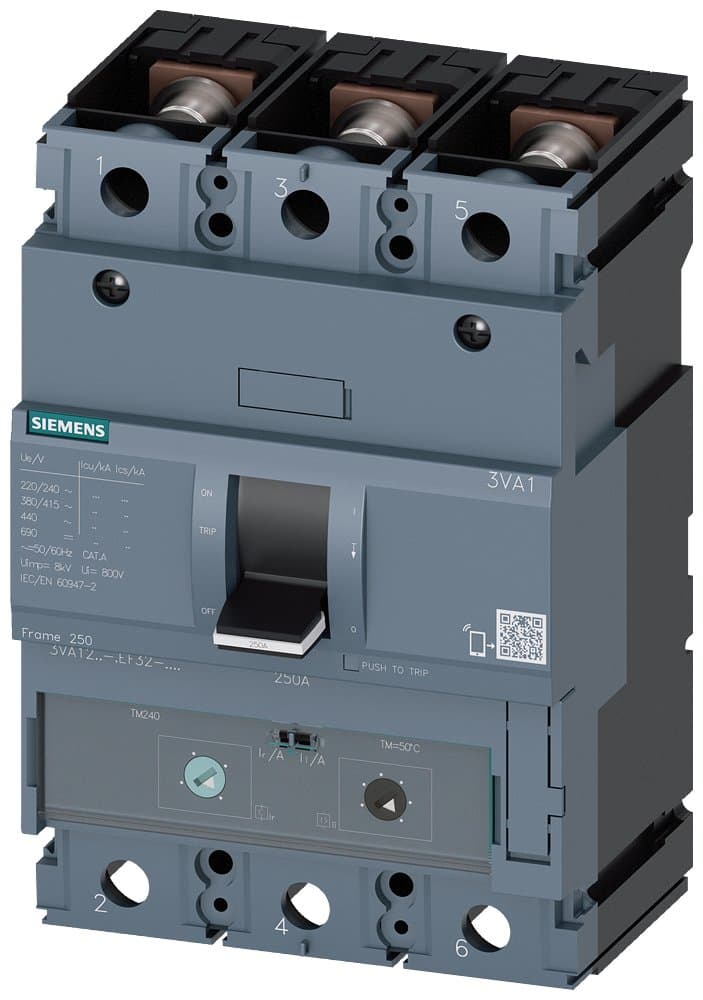

3VA1216-6EF32-0AA0
Selling Points
- 1High breaking capacity of 70 kA at 415 V for 3-pole configuration.
- 2Advanced line protection with TM240, ATAM, and In=160 A overload protection.
- 3Compact and reliable design suitable for various industrial settings.
- 4Meets IEC Frame 250 standards for robust performance.
- 5Enhanced safety features ensure reliable operation in critical environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA1H250 R160 TM240 F/3P; 3VA1_250 dimensions; Rated Current 160A; Interrupting Rating H:70kA; Trip Unit TM240; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240【Thermal Magnetic Type LI】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 70 | Interrupting Rating: | H:70kA |
Rated Current In(A): | 160 | Specifications: | 250【160-250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA1216-6EF32-0AA0 |
Specifications may be subject to change without notice
