Product Model

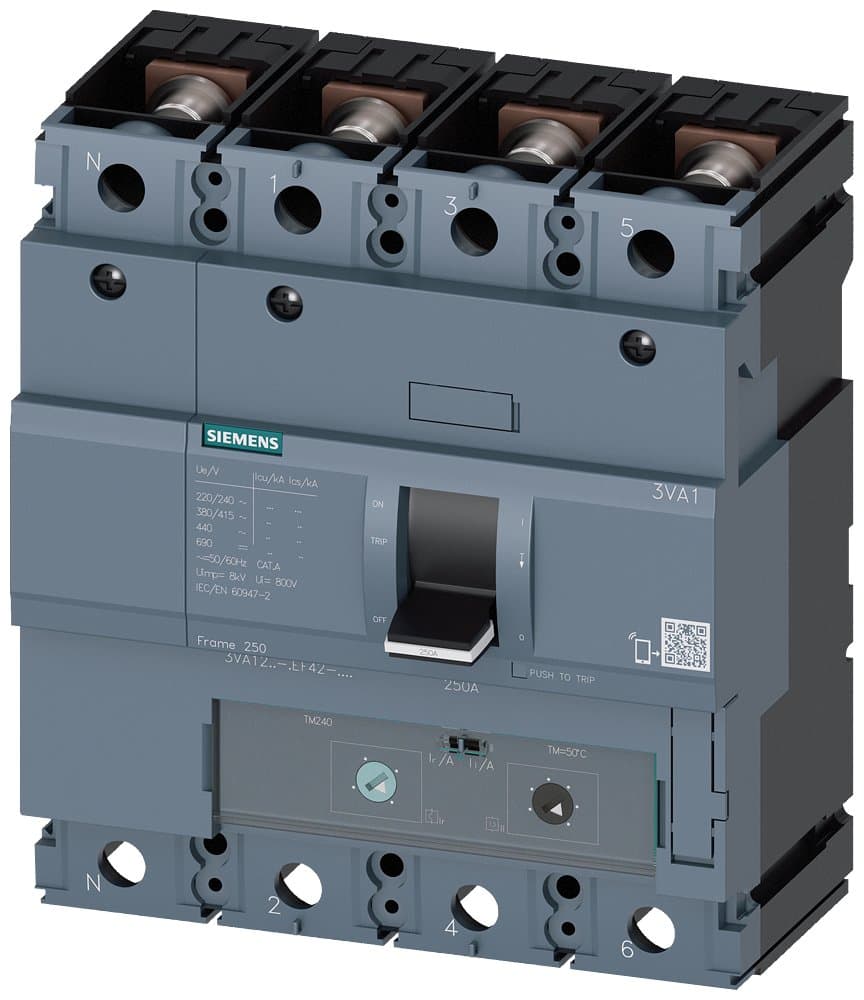

3VA1220-6EF42-0AA0
Selling Points
- 1High breaking capacity of 70 kA at 415 V for reliable short-circuit protection.
- 24-pole design with a rated current of 200 A for efficient line protection.
- 3Integrated thermal-magnetic trip unit for precise overload protection.
- 4Meets IEC standards with class H breaking capacity for robust performance.
- 5Compatible with SENTRON 3VA IEC series for seamless integration into electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 70 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA1H250 R200 TM240 F/4P; 3VA1_250 dimensions; Rated current 200A; Interrupting rating H:70kA; Trip unit TM240; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240【Thermal Magnetic Type LI】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 70 | Interrupting Rating: | H:70kA |
Rated Current In(A): | 200 | Specifications: | 250【160-250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA1220-6EF42-0AA0 |
Specifications may be subject to change without notice
