SiemensMolded Case Circuit Breaker
Product Model

3VA1225-4EE42-0AA0

Manufacturer

Siemens

Category

Molded Case Circuit Breaker

Product ID

119946

In Stock
Last updated: 2025/6/16
View Specifications

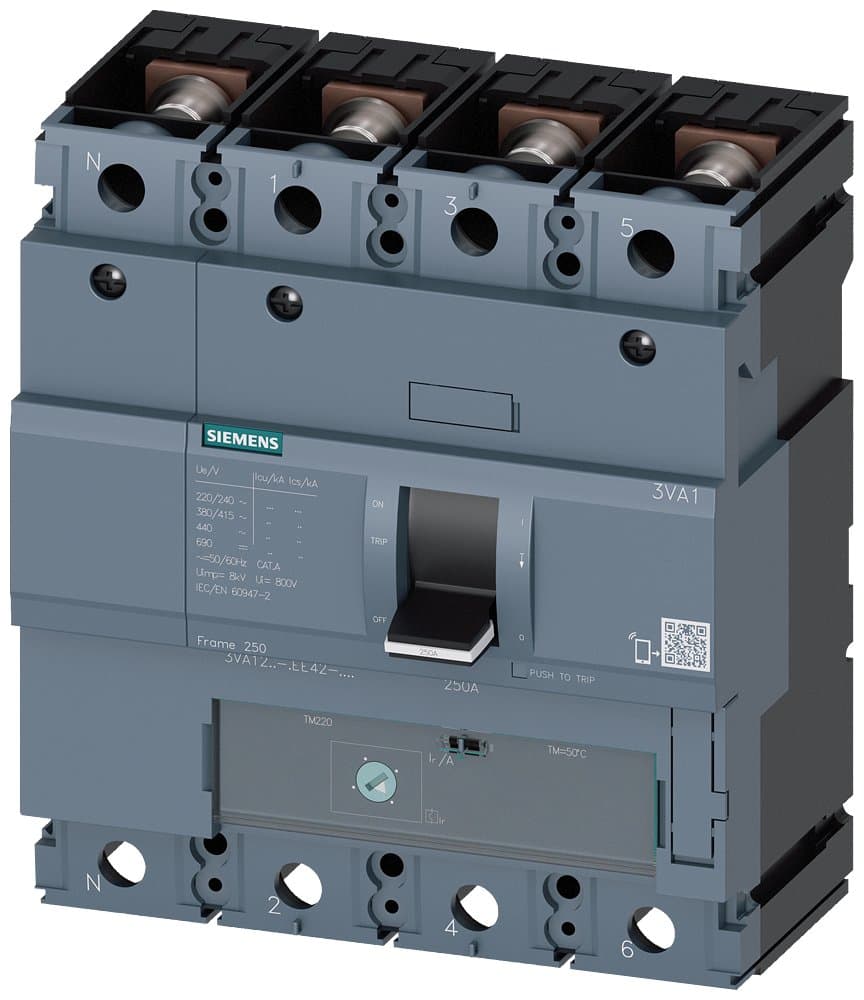

Siemens 3VA1225-4EE42-0AA0

Selling Points

  • 1Reliable Shutdown: Protects electrical motors from overloads and short circuits with a reliable shutdown mechanism.
  • 2Compact Design: Features a compact design for easy installation and space efficiency.
  • 3Modular Accessories: Offers a wide range of modular accessories for flexible customization and functionality.
  • 4High Breaking Capacity: Provides a high breaking capacity of 36kA at 415V, ensuring effective line protection.
  • 5Comprehensive Protection: Includes overload protection (250A) and short-circuit protection (175A-250A), ensuring comprehensive safety.
Product Details
3VA1225-4EE42-0AA0
Siemens

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Rated Service Breaking Capacity Ics(kA):@400V or 415V
36
Rated Voltage(V):
690
Number of Poles:
4P
Description
3VA1S250 R250 TM220 F/4P; Rated Current 250A; Trip Unit TM220; Interrupting Rating S:36kA; 4P; F: Fixed Mounting
Mounting Method:
F: Fixed Mounting
Trip Unit: (If required is not in the list, click reset, select trip unit first)
TM220【L adjustable, I fixed】
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V
36
Interrupting Rating:
S:36kA
Rated Current In(A):
250
Specifications:
250【160-250A】
Lifecycle
Delivery Release (PM300)
Country of Origin
China
ECCN
9N9999
AL
N
Model Number
3VA1225-4EE42-0AA0

Specifications may be subject to change without notice
