SiemensMolded Case Circuit Breaker
Product Model

3VA1225-6GF42-0AA0

Manufacturer

Siemens

Category

Molded Case Circuit Breaker

Product ID

152548

In Stock
Last updated: 2025/5/2
View Specifications

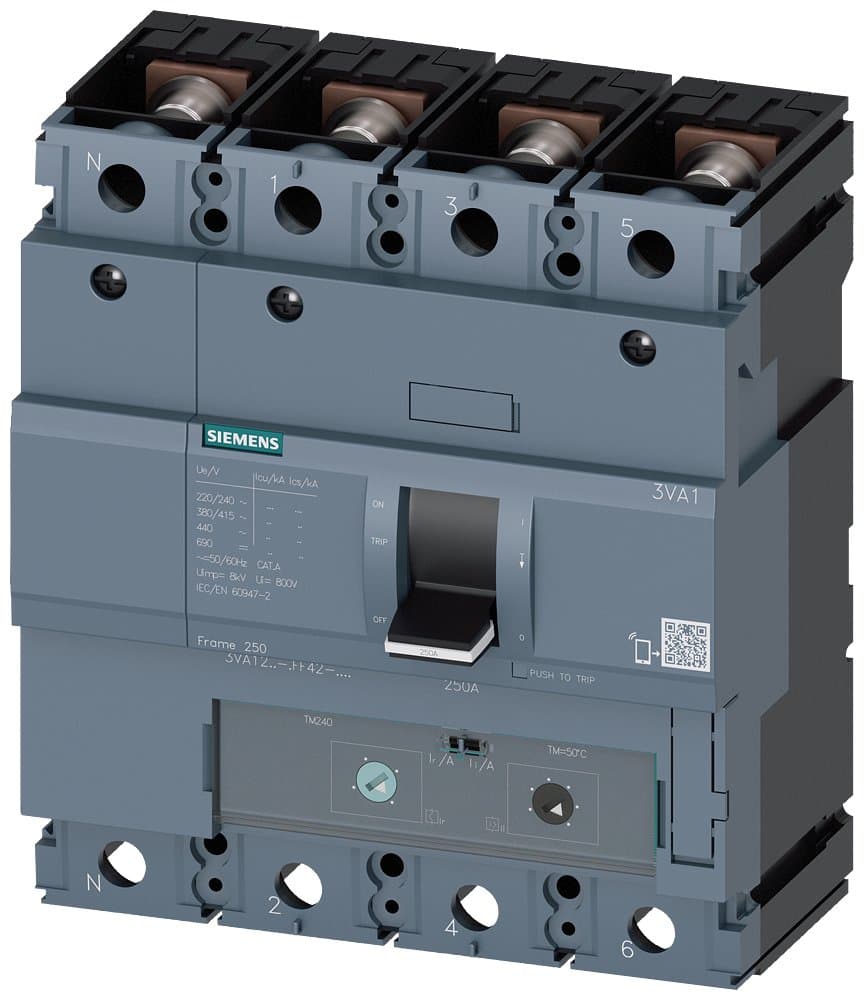

Siemens 3VA1225-6GF42-0AA0

Selling Points

  • 1With a breaking capacity of 70 kA at 415 V, this circuit breaker ensures reliable operation under high current conditions.
  • 2Equipped with TM240 and ATAM line protection, it provides comprehensive protection against electrical faults.
  • 3Offers overload protection up to 250 A and short-circuit protection up to 10 times the nominal current.
  • 4Provides 100% neutral conductor protection for added safety.
  • 5Meets eClass and ETIM classifications, ensuring compliance with international standards.
Product Details
3VA1225-6GF42-0AA0
Siemens

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Rated Service Breaking Capacity Ics(kA):@400V or 415V
70
Rated Voltage(V):
690
Number of Poles:
4P
Description
3VA1H250 R250 TM240N F/4P; 3VA1_250 dimensions; Rated current 250A; Interrupting rating H:70kA; Trip unit TM240N;
Mounting Method:
F: Fixed Mounting
Trip Unit: (If required is not in the list, click reset, select trip unit first)
TM240N【Thermal Magnetic Type LI】
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V
70
Interrupting Rating:
H:70kA
Rated Current In(A):
250
Specifications:
250【160-250A】
Lifecycle
Delivery Release (PM300)
Country of Origin
China
ECCN
9N9999
AL
N
Model Number
3VA1225-6GF42-0AA0

Specifications may be subject to change without notice
