Product Model

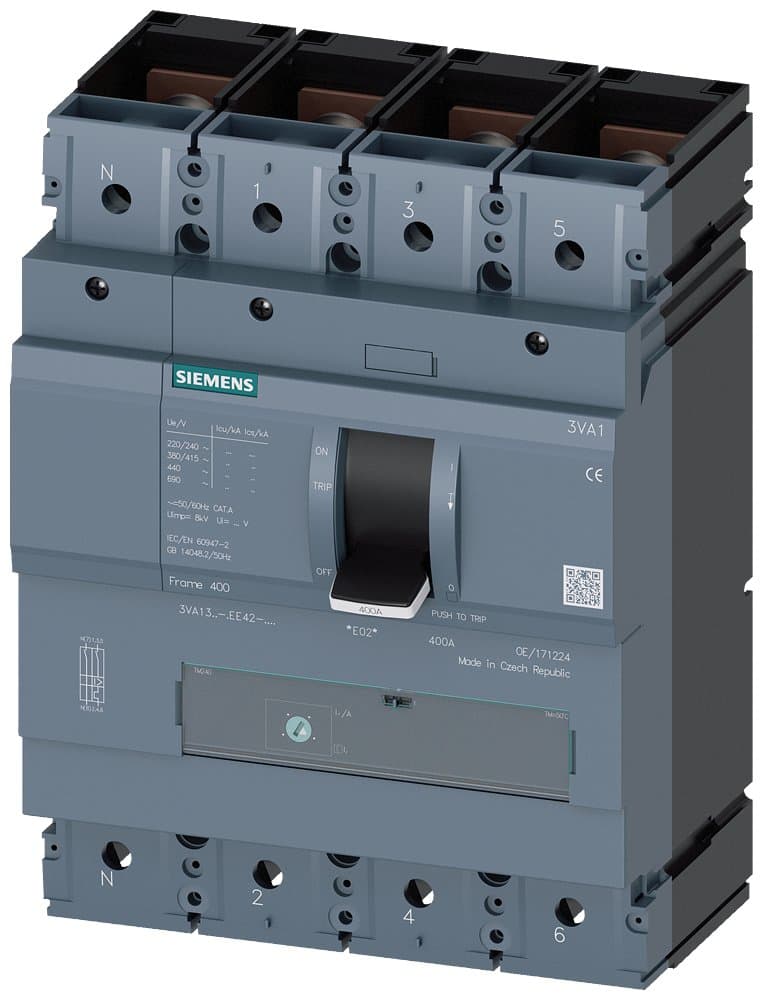

3VA1340-4EE42-0AA0
Selling Points
- 1High breaking capacity of 36 kA at 415 V.
- 2Robust 3VA1 IEC Frame 400 design for reliable operation.
- 3Comprehensive protection with line protection TM220 and ATFM.
- 4Overload protection up to 400 A and short-circuit protection up to 10 x In.
- 5100% nut keeper kit for secure conductor protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 36 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA1S400 R400 TM220 F/4P; 3VA1_400 dimensions; Rated current 400A; Interrupting S:36kA; Trip unit TM220; |
Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM220【L adjustable, I fixed】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
Rated Current In(A): | 400 | Specifications: | 400【250-400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA1340-4EE42-0AA0 |
Specifications may be subject to change without notice
