Product Model

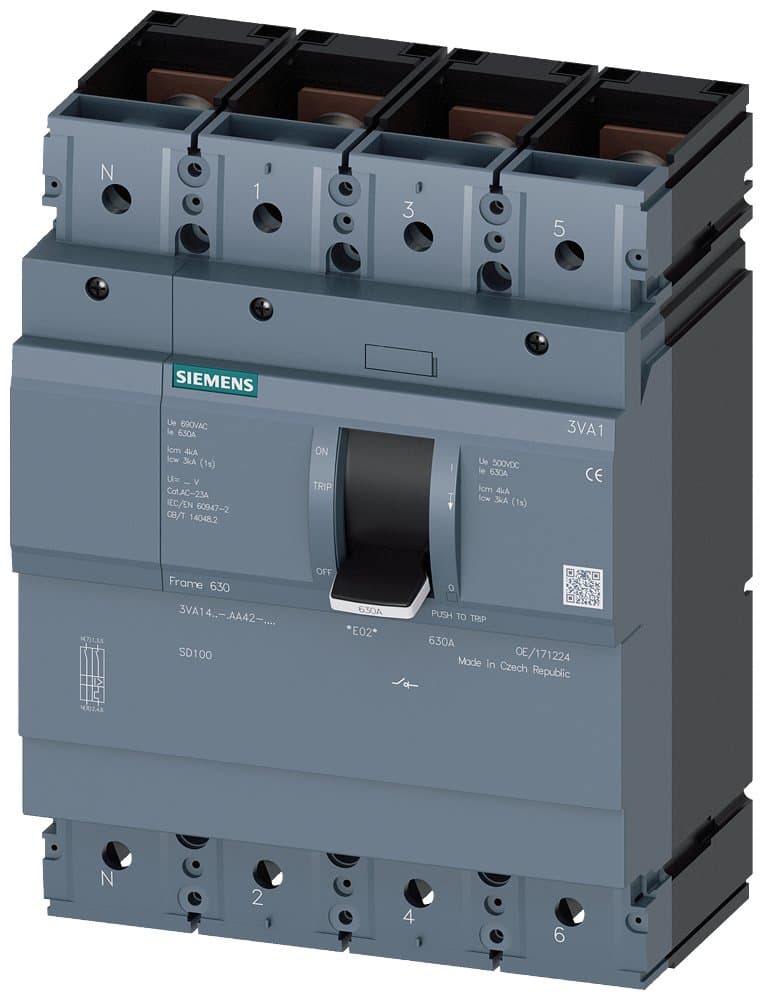

3VA1450-1AA42-0AA0
Selling Points
- 1High Current Rating: Handles up to 500A without interruption.
- 2IEC Frame 630: Meets international safety standards for electrical equipment.
- 34-Pole Configuration: Suitable for various industrial electrical systems.
- 4SD100 Switch Disconnector: Ensures safe and efficient switching operations.
- 5Durable Construction: Built to withstand harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Voltage(V): | 690 | Number of Poles: | 4P |
Description | 3VA1B630 R500 SD100 F/4P; 3VA1_630 dimensions; Rated current 500A; Breaking B: 16kA; Trip unit SD100; | Mounting Method: | F: Fixed |
Trip Unit: (If required is not in the list, reset and select trip unit first) | SD100【Isolator Switch】 | Breaking Rating: | (Isolation) |
Rated Current In(A): | 500 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3VA1450-1AA42-0AA0 |
Specifications may be subject to change without notice
