Product Model

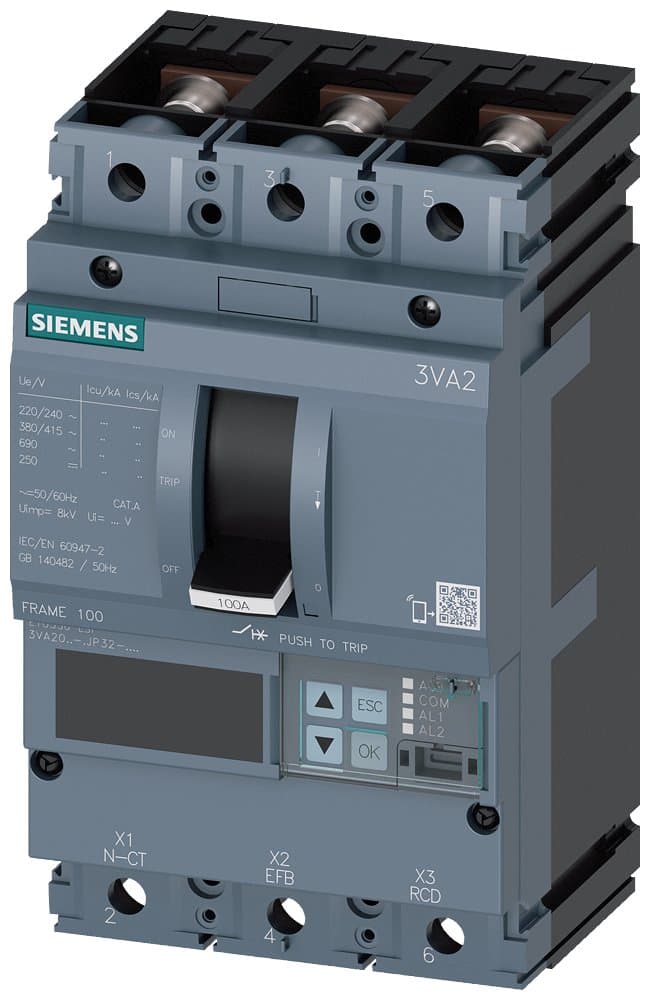

3VA2010-6JP32-0AA0
Selling Points
- 1Designed with modular and variable systems for optimal support in every process step.
- 2Provides overload and short-circuit protection with thermal-magnetic trip units.
- 3Mounting depth of 70 mm and cover size of 45 mm for easy installation.
- 4Wide range of internal accessories for diverse functions, including alarm and auxiliary switches.
- 5Color-coded control elements and clear status indication for easy operation under poor lighting conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA): @400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2H100 R100 ETU550 F/3P; 3VA2_100 dimensions; Rated current 100A; Interrupting rating H:85kA; Trip unit ETU550; |
Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550 [Electronic LSI + LCD] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 100 | Specifications: | 100 [16-100A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2010-6JP32-0AA0 |
Specifications may be subject to change without notice
