Product Model

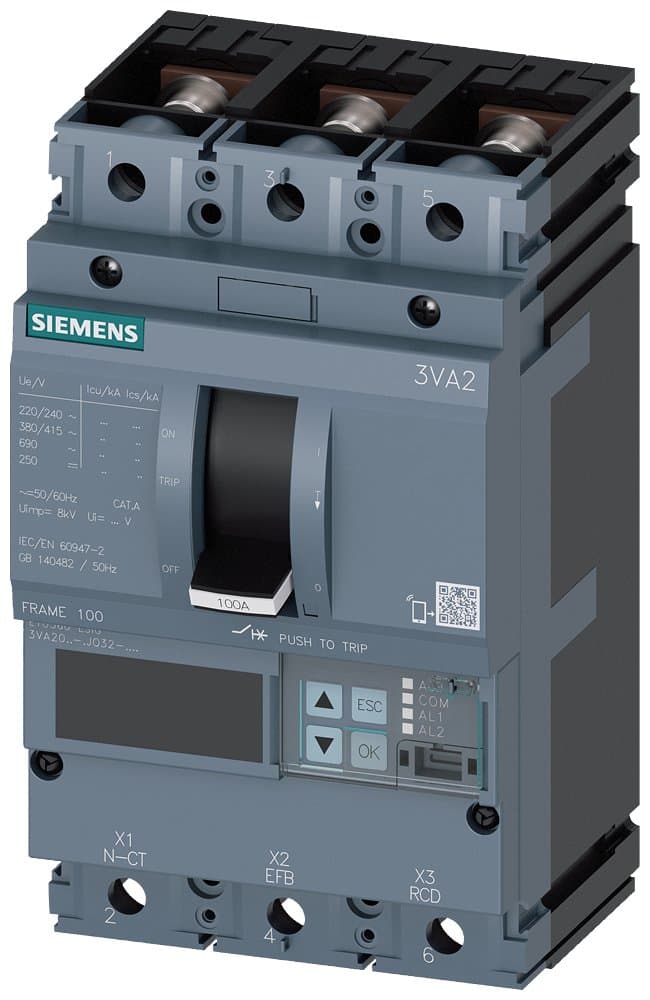

3VA2025-6JQ32-0AA0
Selling Points
- 1The 3VA2025-6JQ32-0AA0 circuit breaker offers a breaking capacity of 85 kA at 415 V, ensuring reliable protection against short circuits.
- 2Equipped with an Electronic Trip Unit (ETU), this circuit breaker provides selective protection, minimizing damage to the electrical system during faults.
- 3With an overload protection of 25 A, the 3VA2025-6JQ32-0AA0 safeguards against excessive current flow, preventing equipment damage.
- 4Available in 3-pole configuration, this circuit breaker supports both fixed-mounting and plug-in technologies, offering flexibility in installation options.
- 5Integrated with ETU560, the 3VA2025-6JQ32-0AA0 allows for seamless communication with higher-level management systems, enhancing system monitoring and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2H100 R25 ETU560 F/3P; 3VA2_100 dimensions; Rated current 25A; Interrupting rating H:85kA; Trip unit ETU560; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU560 [Electronic LSIG + LCD] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 25 | Specifications: | 100 [16-100A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2025-6JQ32-0AA0 |
Specifications may be subject to change without notice
