Product Model

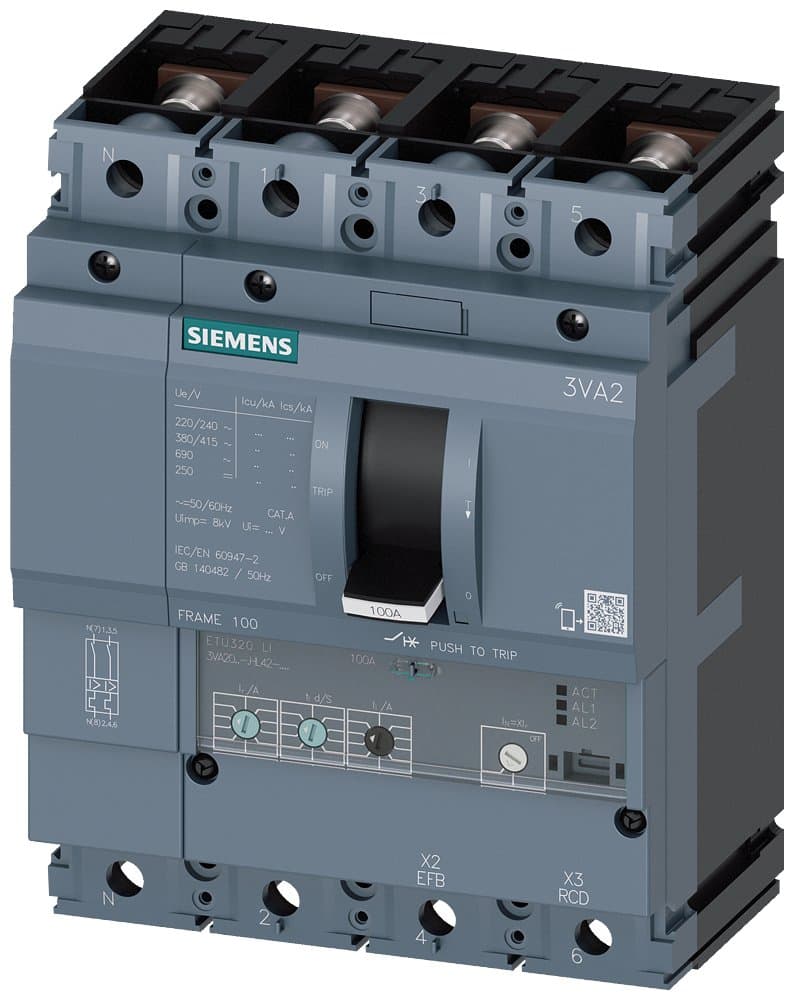

3VA2040-5HL42-0AA0
Selling Points
- 155 kA @ 415 V, ensuring reliable circuit interruption.
- 2ETU320 line protection for enhanced safety.
- 3In=40 A, Ir=16 A, safeguarding against excessive current.
- 4Compliant with international standards for robust performance.
- 5SENTRON product designation for durability and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2M100 R40 ETU320 F/4P; 3VA2_100 Dimensions; Rated Current 40A; Interrupting Rating M: 55kA; Trip Unit ETU320; |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU320 [Electronic Type LI] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M: 55kA |
Rated Current In(A): | 40 | Specifications: | 100 [16-100A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2040-5HL42-0AA0 |
Specifications may be subject to change without notice
