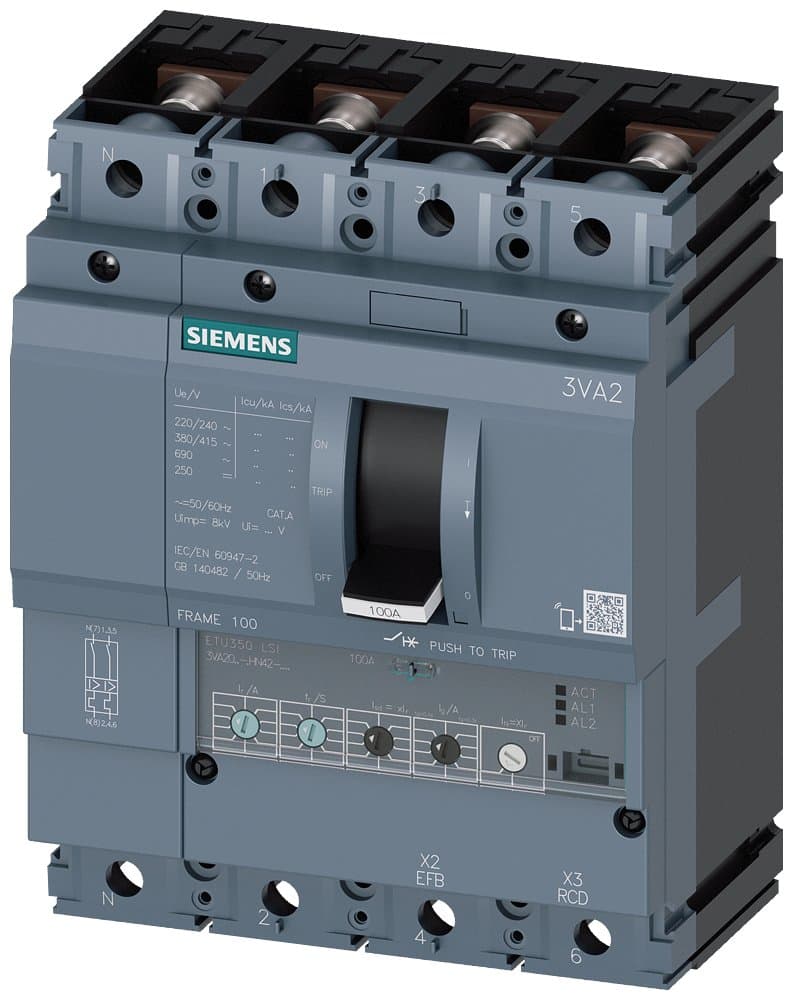

Product Model
3VA2063-5HN42-0AA0
Selling Points
- 1High breaking capacity up to 55 kA at 415 V.
- 2Advanced electronic trip units with integrated metering functions.
- 3Compact design with flexible mounting options (fixed-mounting, plug-in, draw-out).
- 4Selective protection response in rated operational current interval.
- 5Integrated data collection and communication via fieldbus systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2M100 R63 ETU350 F/4P; 3VA2_100 dimensions; Rated current 63A; Interrupting rating M: 55kA; Trip unit ETU350; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU350 [Electronic LSI] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M: 55kA |
Rated Current In(A): | 63 | Specifications: | 100 [16-100A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2063-5HN42-0AA0 |
Specifications may be subject to change without notice
